TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 261

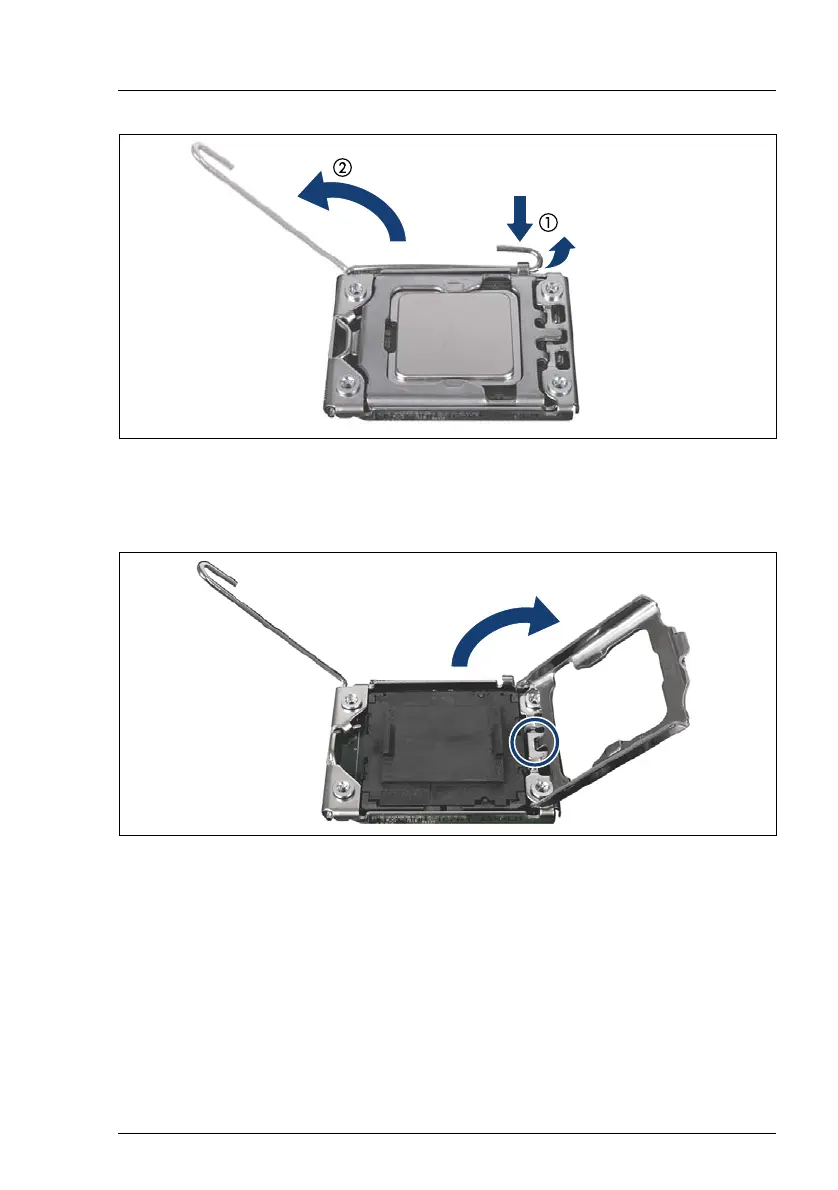

Figure 179: Opening socket release lever
Ê Unlatch the socket release lever by pushing it down and away from the
socket (1) I=~åÇ=ÃÜÉå=ëïáîÉä=áÃ=ìé=EOF.
Figure 180: Opening the load plate
Ê Open the load plate of the processor socket.
V CAUTION!
Handle the locking frame carefully.
In a vertical position, the small clip (see circle) can scratch the system
board.
