336 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Front panel and external connectors
13.1.1.4 Installing the front panel module
Connecting cables to the front panel module
Ê If the front LAN connector is to be installed in the new front panel module,
install the front LAN cable as described in section "Installing the front LAN
connector" on page 340.

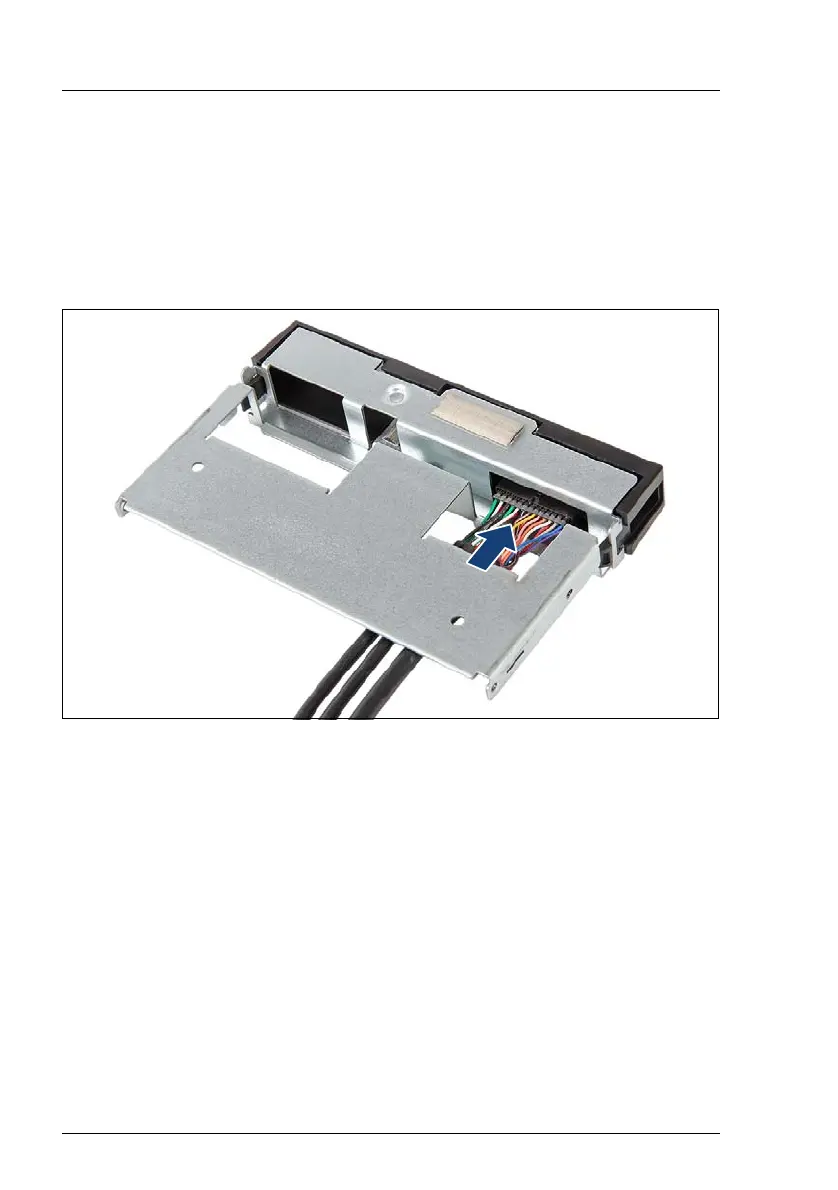

Figure 254: Connecting the front panel cable
Ê Connect the front panel cable to the new front panel module as shown.
