TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 357
System board and components

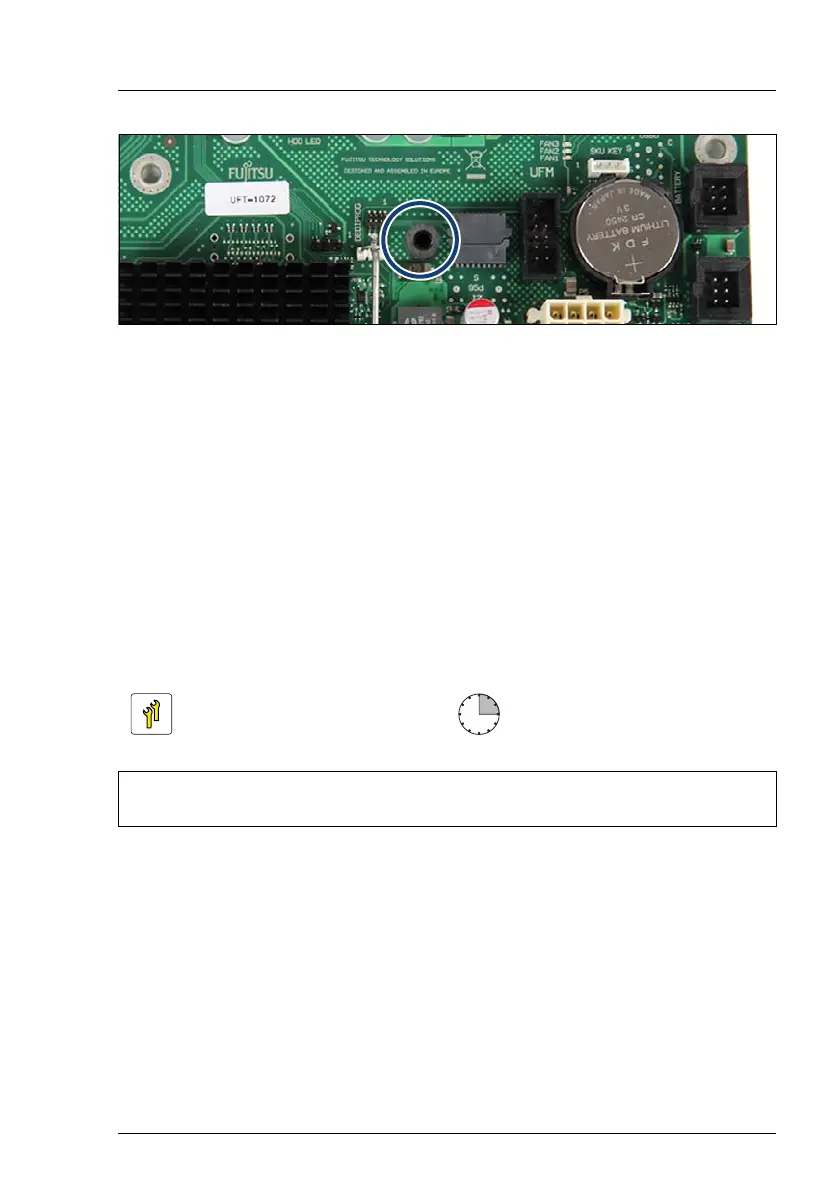

Figure 270: Removing the UFM (B)
Ê The UFM spacer remains on the system board.
14.3.2.3 Concluding steps
Ê "Reassembling" on page 64
Ê "Connecting the server to the mains" on page 74
Ê "Switching on the server" on page 75
Ê "Enabling BitLocker functionality" on page 100
14.3.3 Replacing the UFM
14.3.3.1 Preliminary steps
Ê "Disabling or suspending BitLocker functionality" on page 79
Ê "Disabling SVOM boot watchdog functionality" on page 80
Ê "Locating the defective server" on page 47
Ê "Shutting down the server" on page 50
Ê "Disconnecting the server from the mains" on page 50
Ê "Getting access to the component" on page 51
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Software: 5 minutes
Tools: – Phillips PH1 / (+) No. 1 screw driver
– combination pliers and flat nose pliers
