Converting a tower model to a rack model

15.2 Converting a tower model to a rack model

Removing the right side cover

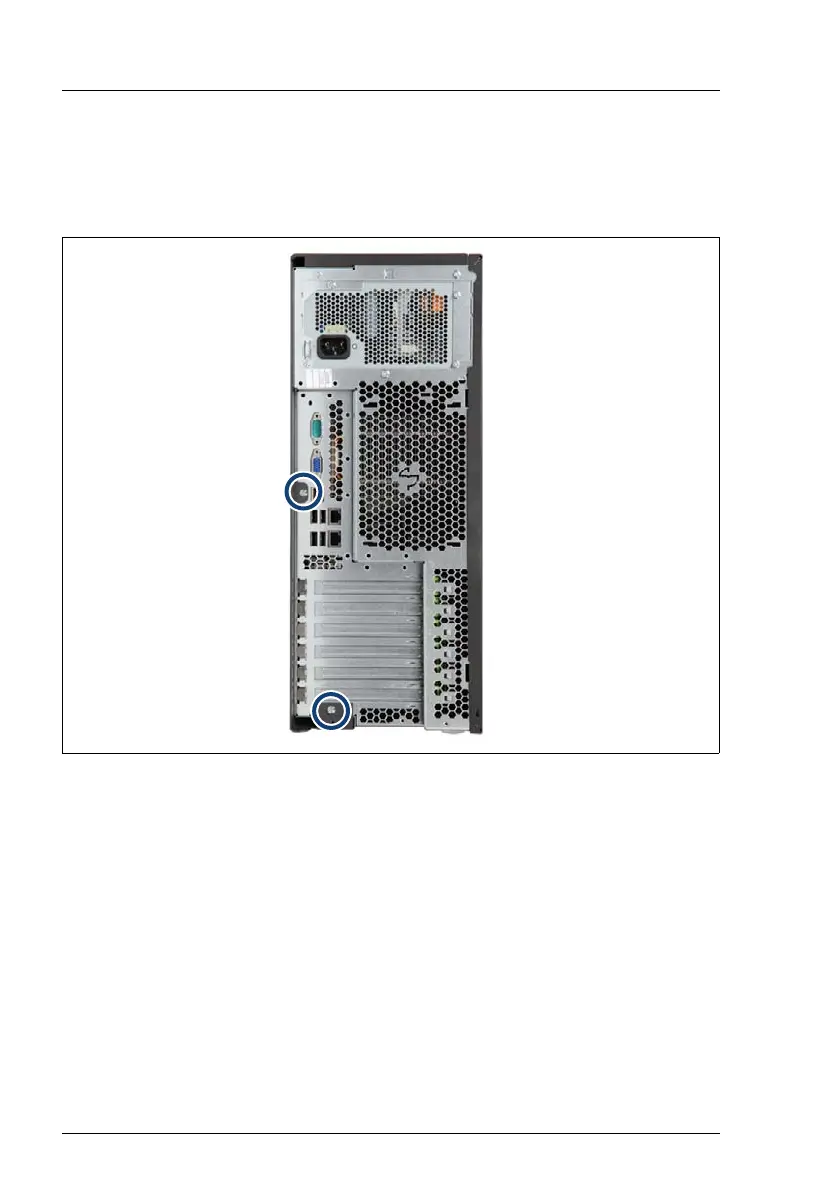

Figure 296: Removing the right side cover (A)

Ê Remove two screws on the server rear (see circles).
