TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 177
Hard disk drives / solid state drives

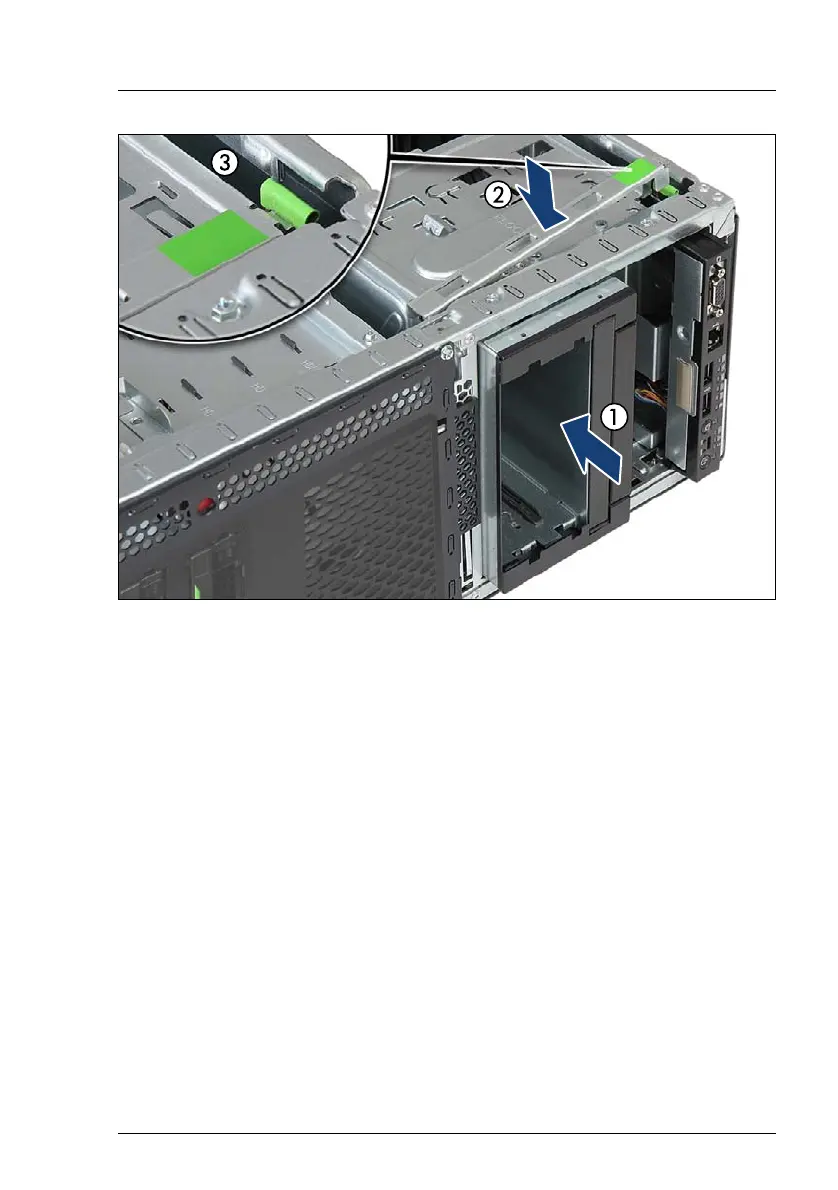

Figure 108: Inserting the HDD extension box (example 2x 3.5-inch HDD extension box)
Ê Insert the HDD extension box into installation bays (1) and carefully push in
until the front screw hole on the front panel frame lines up with the centering
pin on the locking bar.
Ê Close the locking bar (2) until it locks in place (3).
