294
Upgrade and Maintenanc
e Manual
TX150 S8 / TX200 S7
Accessible drives and LSD

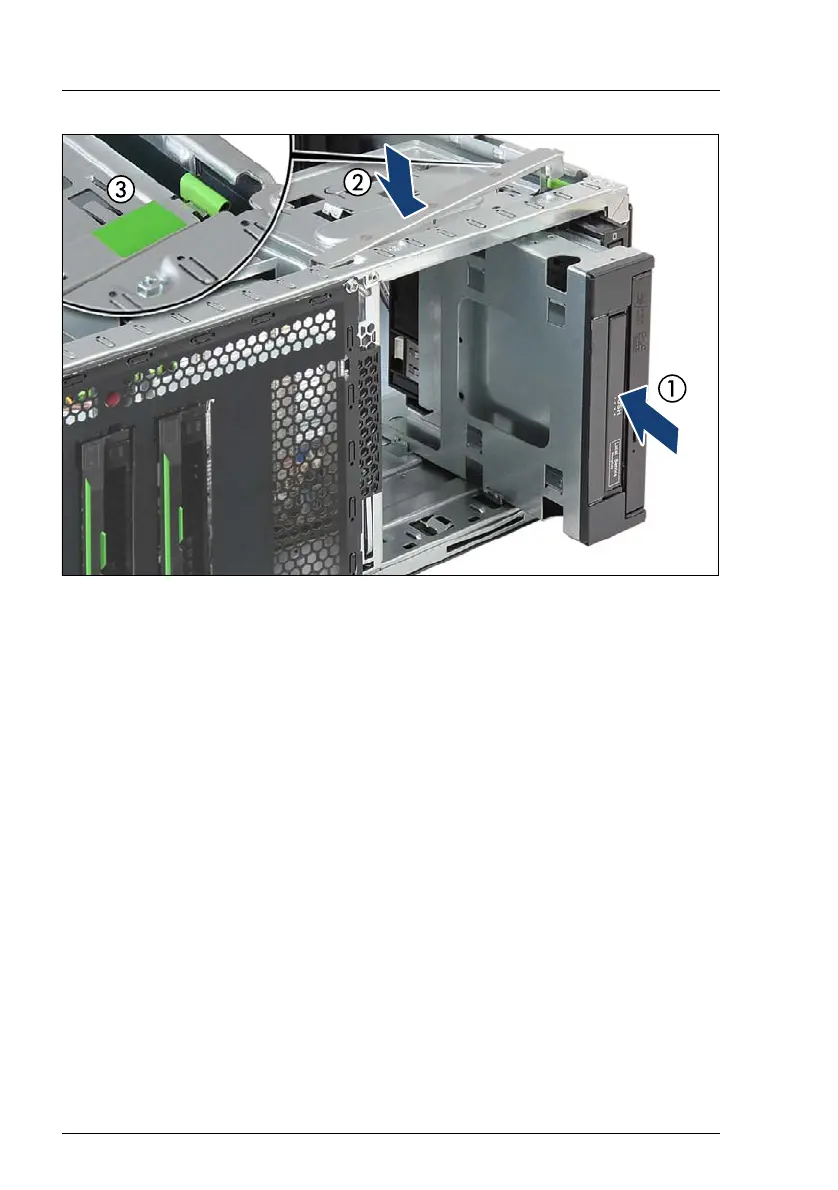

Figure 209: Inserting t
he Multibay box
Ê
Insert the Multibay box into
installation bay 1 and c
arefully push in until the
front screw hole on the front panel frame lines up with the centering pin on
the locking bar (1).
Ê
Close the locking bar (2) until it locks in place (3).
