TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 311
Accessible drives and LSD

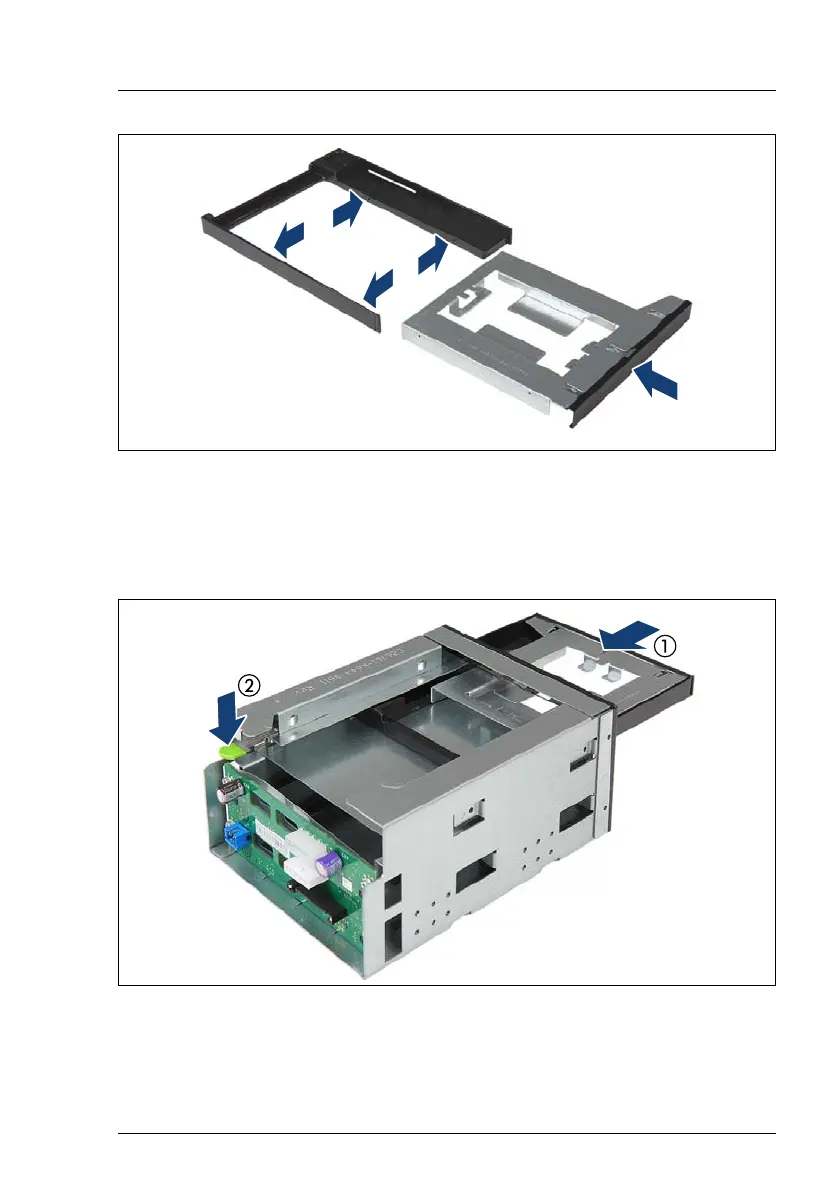

Figure 229: Mounting the slimline ODD dummy insert in the installation frame
Ê Fit the slimline ODD dummy insert into the slimline ODD installation frame.
Ê Ensure that the four pins on the frame (see arrows) engage with the side
holes on the dummy insert.
Figure 230: Mounting the slimline ODD module in the HDD expansion box
Ê Insert the slimline ODD dummy module into the HDD extension box (1) and
push back until the locking tab (2) engages.
