TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 413

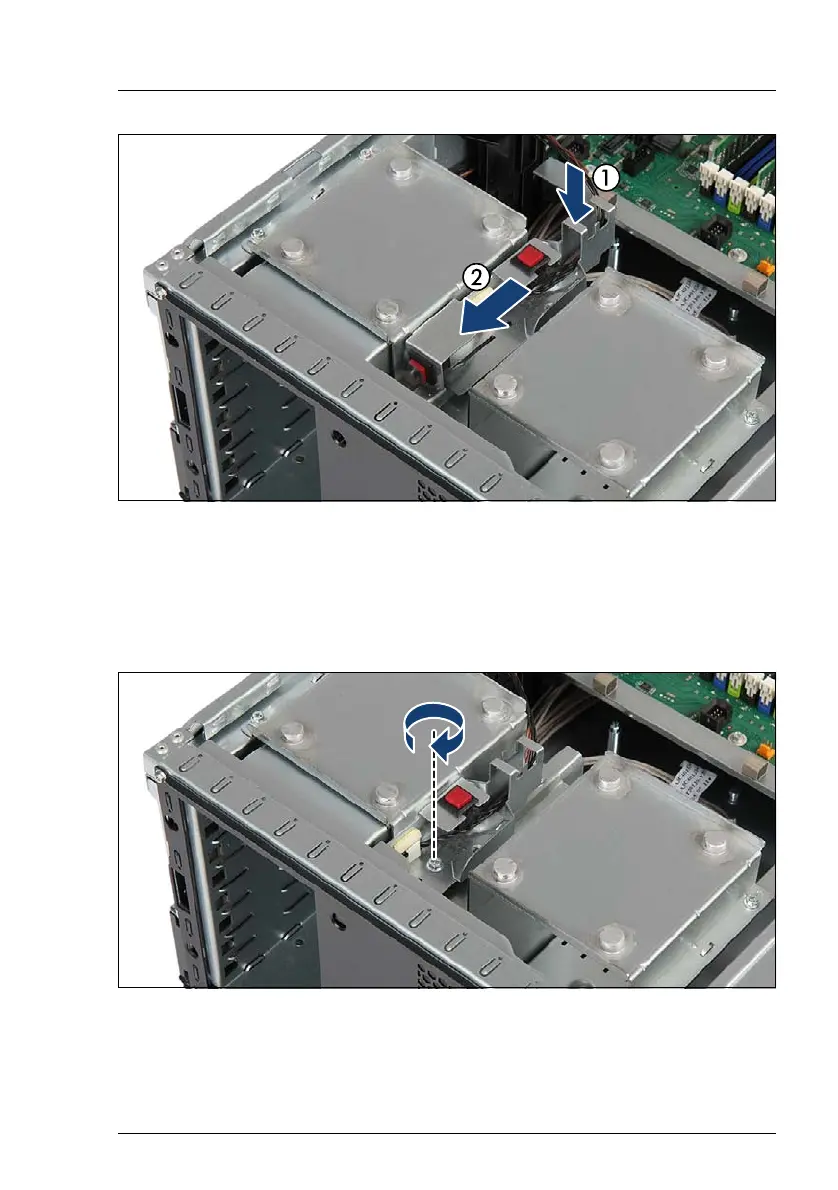

Figure 324: Installing the intrusion switch cable (A)
Ê Place the new intrusion switch holder on the HDD bay top cover as shown
(1).
Ê Slide the intrusion switch holder under the front chassis rim as far as it will
go (2).
Figure 325: Installing the intrusion switch cable (B)
Ê Secure the intrusion switch holder on the HDD bay top cover with one screw.
