118 Upgrade and Maintenance Manual TX150 S8 / TX200 S7
Power supply units

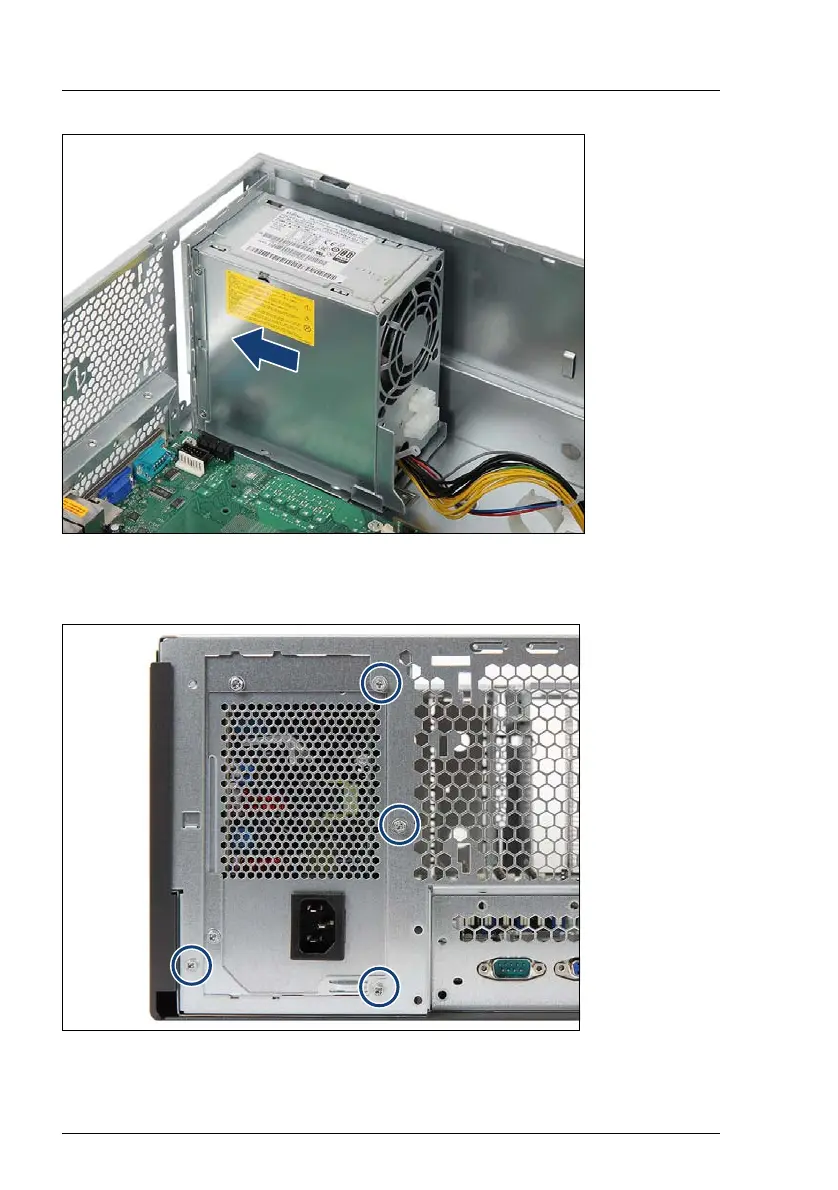

Figure 47: Installing PSU in the chassis (B)
Ê Slide the power supply unit towards the server rear as far as it will go.
Figure 48: Installing PSU in the chassis (B)
Ê Secure the power supply unit to the chassis with four screws (see circles).
