132 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7

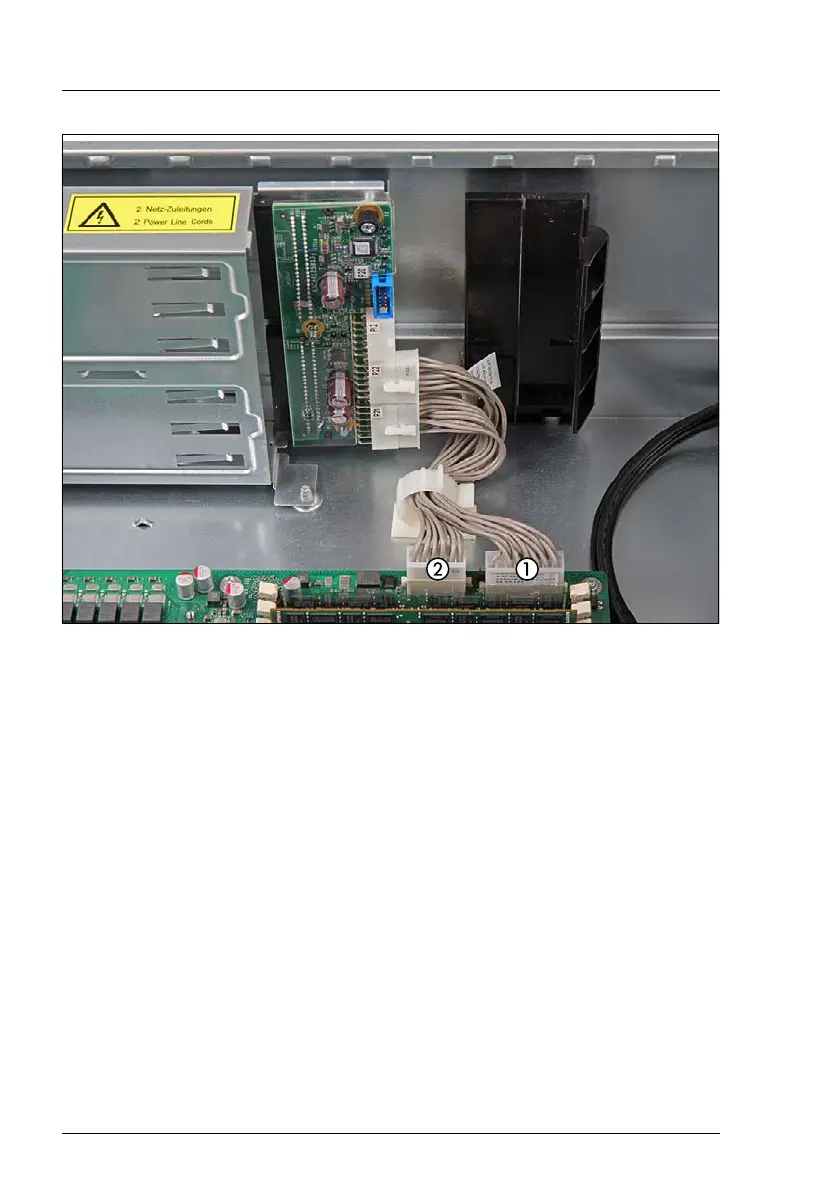

Figure 58: Connecting cables (A)
Ê Connect the power cable (1):
– connector P21 to power backplane connector "P21"
– connector P1 to system board connector "PWR 1"
Ê Connect the power cable (2):
– connector P22 to power backplane connector "P22" (TX200 S7 only)
– connector P2 to system board connector "PWR 2" (TX200 S7 only)
