134 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7

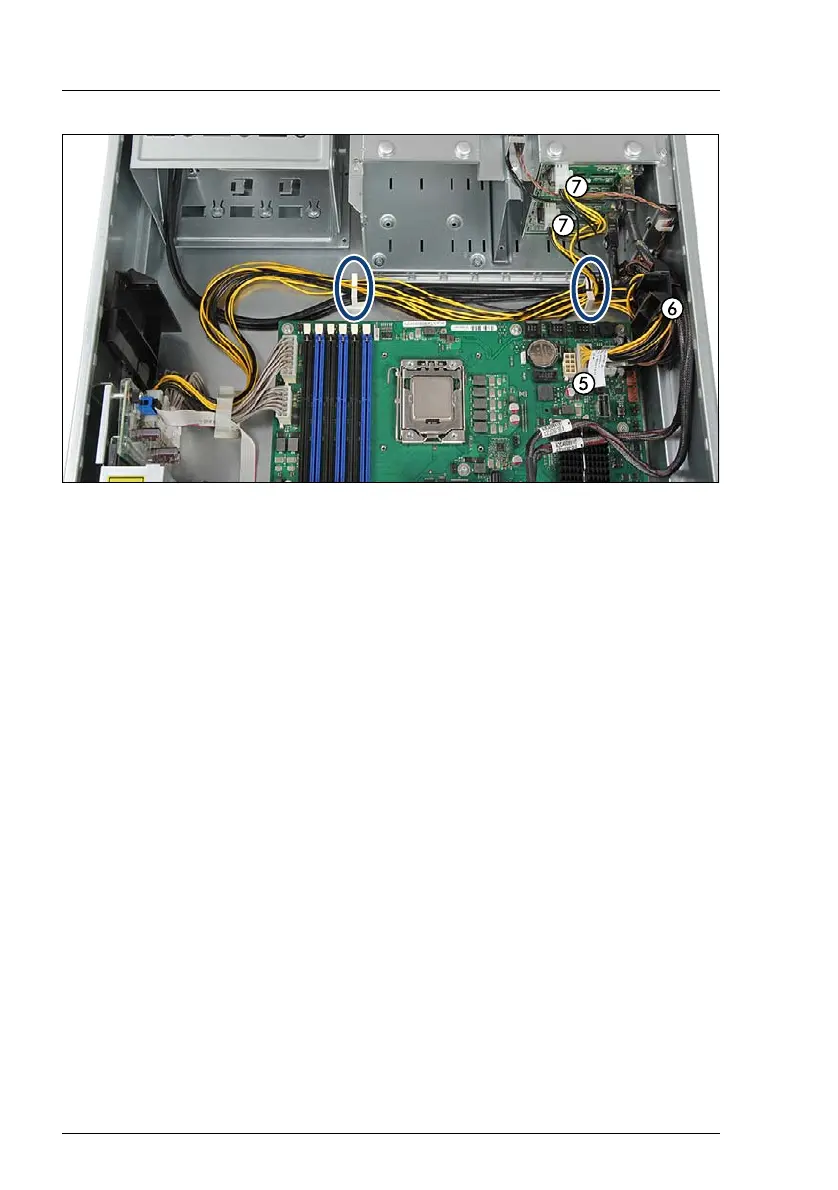

Figure 60: Connecting cables (C)
Ê Connect the power cable (4 in figure 59) to the system board and the SAS
backplane:
– connector P12 (10-pin) to system board connector "P3(PWR3)" (5)
– Run the cable through the cable guide (6) as shown.
– 2.5-inch HDD configurations (7): see section "Cabling plans" on
page 405
– 3.5-inch HDD configurations (7): see section "Cabling plans" on
page 405
Ê Run the cable through the two cable clamps (see circles).
