TX150 S8 / TX200 S7 Upgrade and Maintenance Manual 171
Hard disk drives / solid state drives
4x 3.5-inch HDD extension box

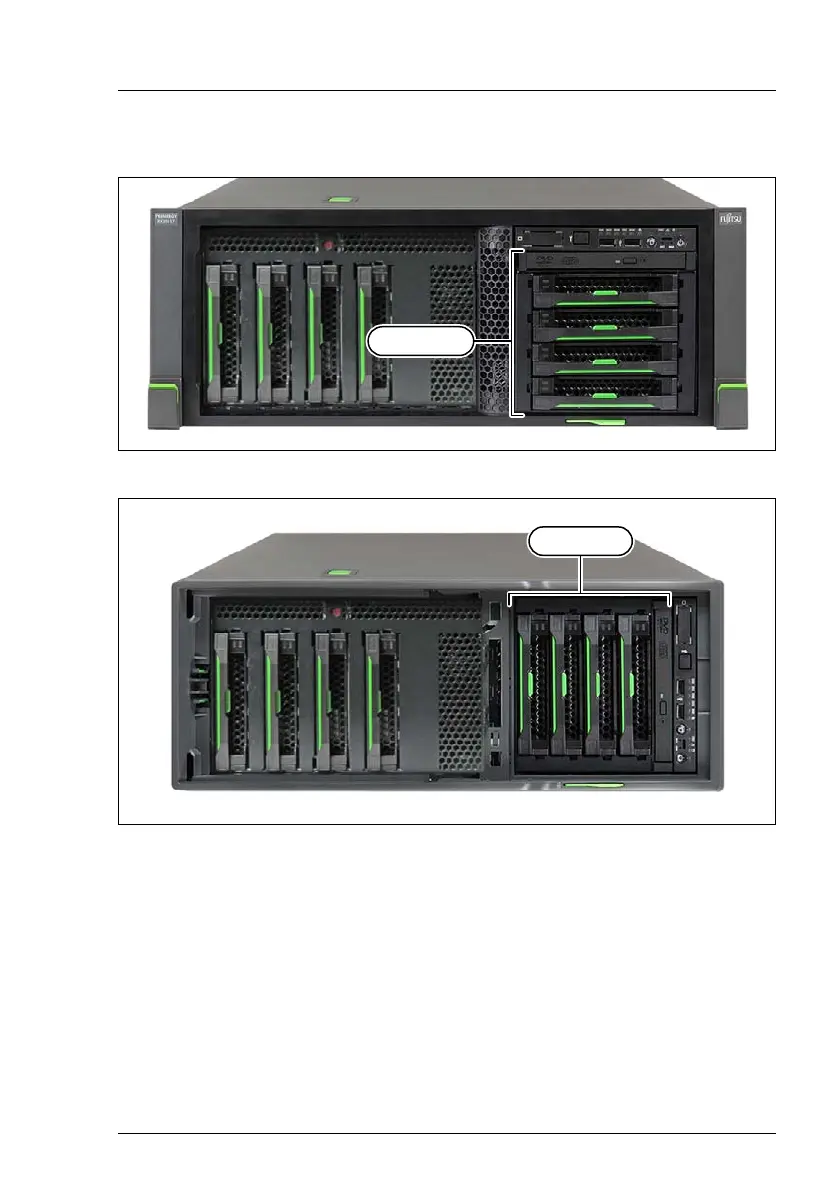

Figure 101: 4x 3.5-inch HDD extension box - Rack version
Figure 102: 4x 3.5-inch HDD extension box - Tower version
I The 4x 3.5-inch HDD extension box occupies accessible drive bays 1, 2
and 3. This box can also be equipped with a slimline ODD.
Bays 1-3
Bays 1-3
