214 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Expansion cards and backup units

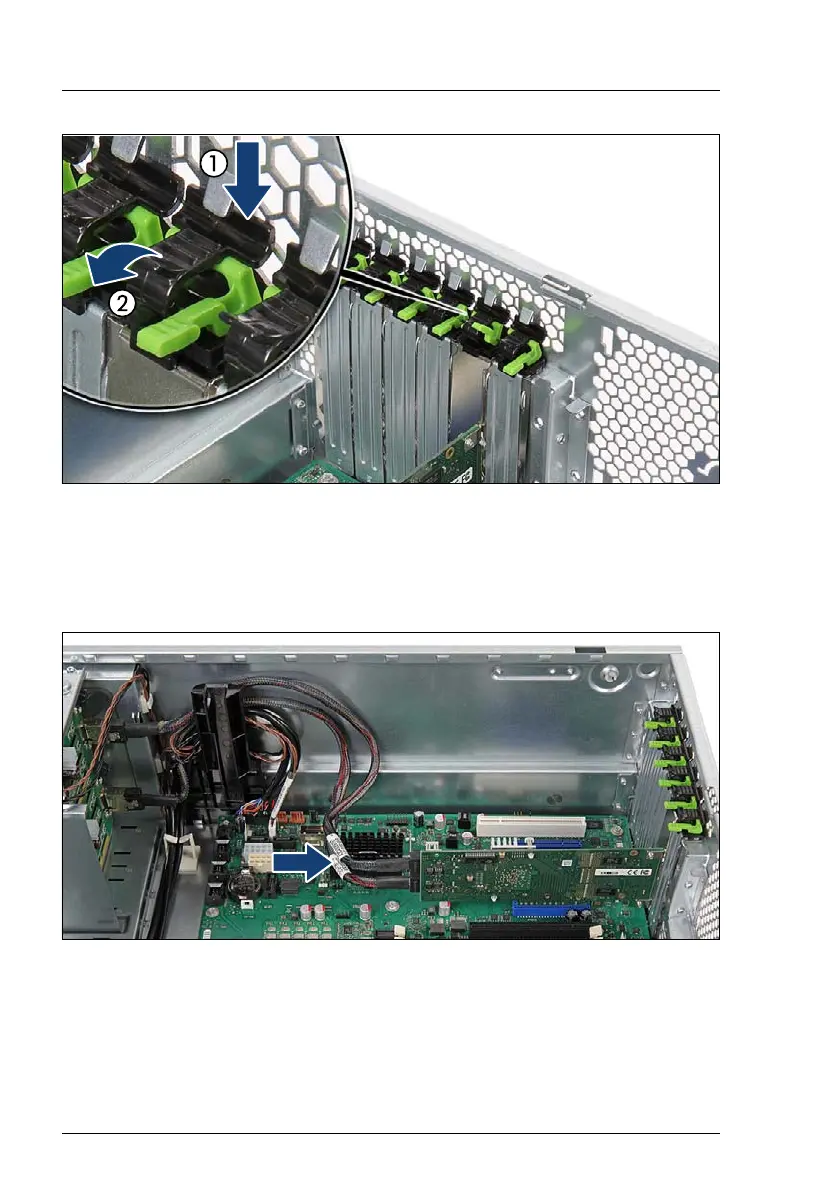

Figure 143: Installing the expansion card (B)
Ê Clip on the PCI slot bracket clamp (1).
Ê Fold down the locking handle on the PCI slot bracket clamp until it locks in
place (2).
Figure 144: Connecting cables to the expansion card
Ê If applicable, connect internal cables to the expansion card (see section
"Cabling plans" on page 405).
V CAUTION!
Ensure that the RAID controller is not deformed.
