TX150 S8 / TX200 S7
Upgrade and Maintenance Manual 227
Expansion cards and backup units

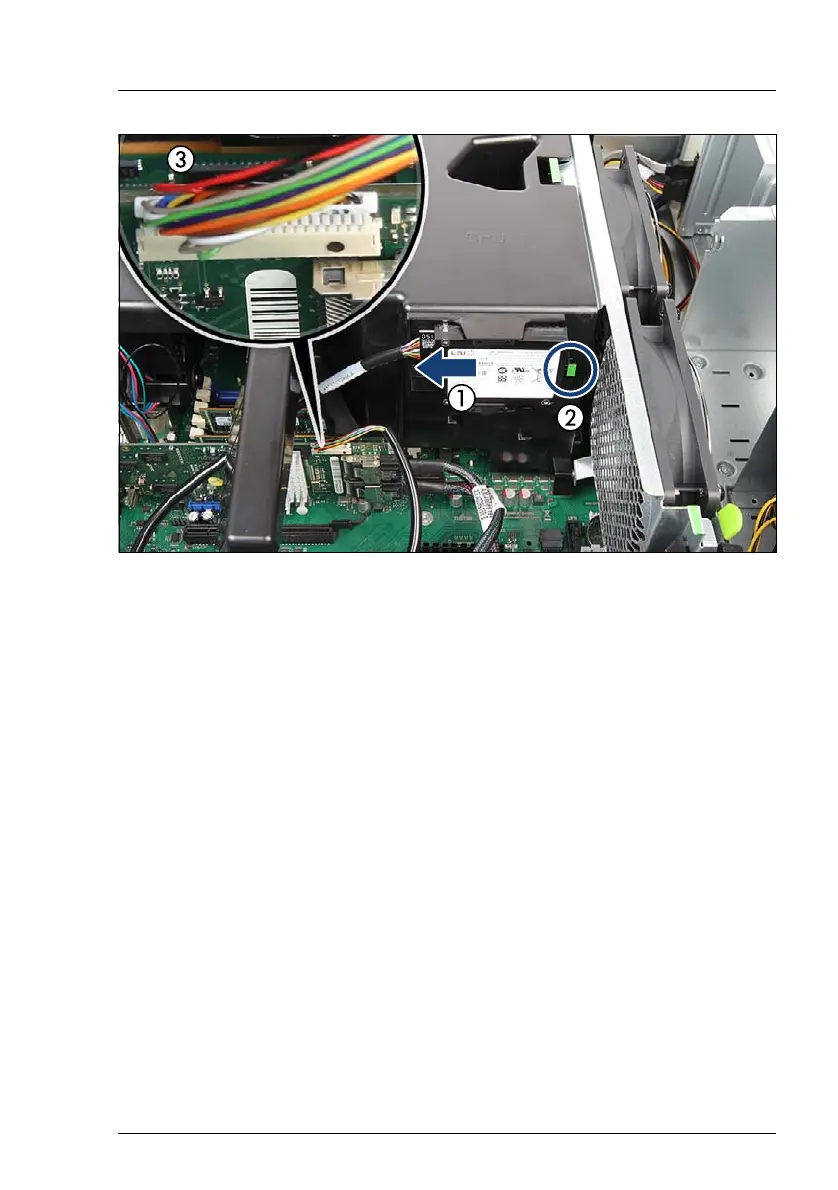

Figure 153: Mounting the BBU holder (B)
Ê Insert the BBU holder into the chassis so that the three hooks on the air duct
rest in the wide ends of the keyhole slots on the BBU holder.
Ê Slide the BBU holder in as far as it will go (1).
The hooks on the air duct will lock in the narrow ends of the keyhole slots on
the BBU holder.
Ê Ensure that the locking handle on the BBU holder properly snaps in place
(2).
Ê If applicable, install a RAID controller as described in section "Installing
expansion cards" on page 211.
Ê Connect the BBU cable to the RAID controller (3, see close-up).
V CAUTION!
Make sure that the connector side with the three dots points towards
you. Otherwise, short-circuits may result!
