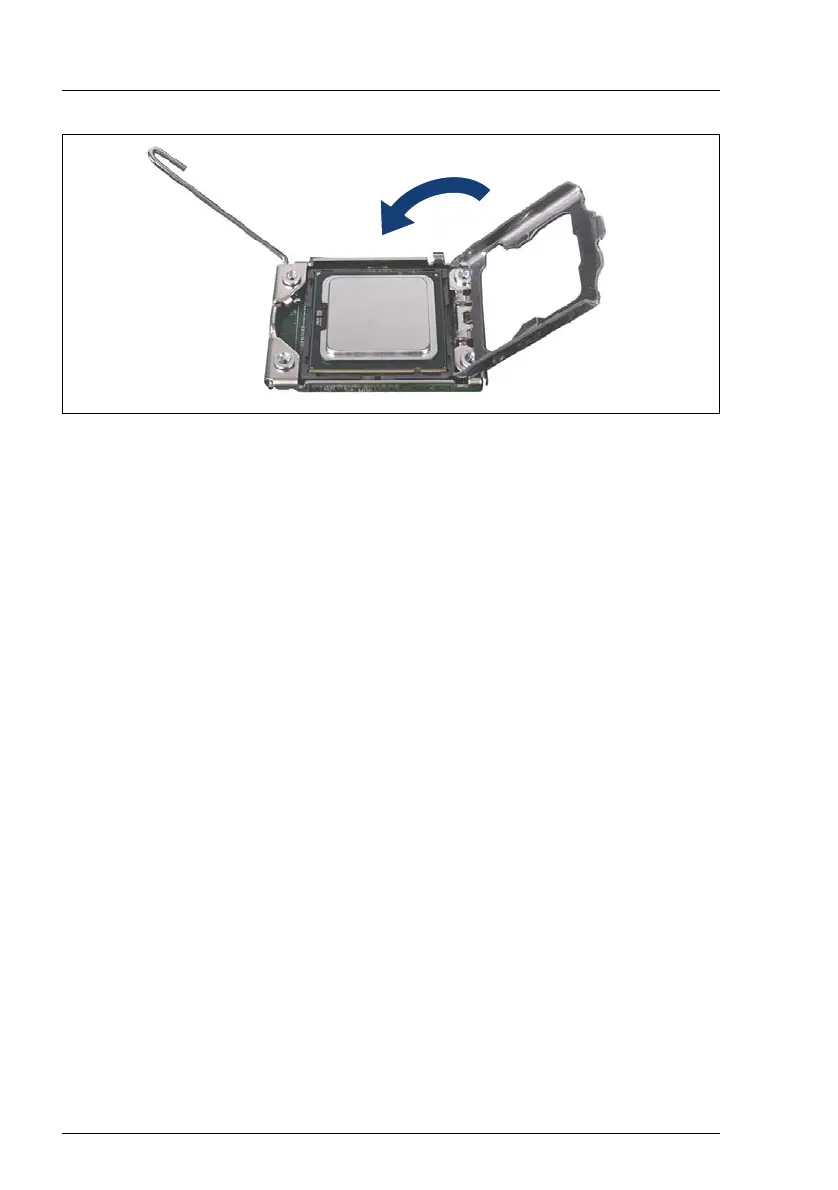

Figure 177: Closing the load plate
Ê Hold the processor with your thumb and index finger.
Ê Place the new processor on the socket.
I Make sure that the recesses on the processor are aligned with the
corresponding markings on the socket.
V CAUTION!
– Ensure that the processor is level in the socket.
– Be careful not to touch or bend the pins on the processor socket.
– Never touch the underside of the processor. Even minor soiling
such as grease from the skin can impair the processor’s operation
or destroy the processor.
– Ensure not to scrape or dent the processor edges.
Ê Close the load plate of the processor.
