338 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Front panel and external connectors
Connecting front panel cables to the system board

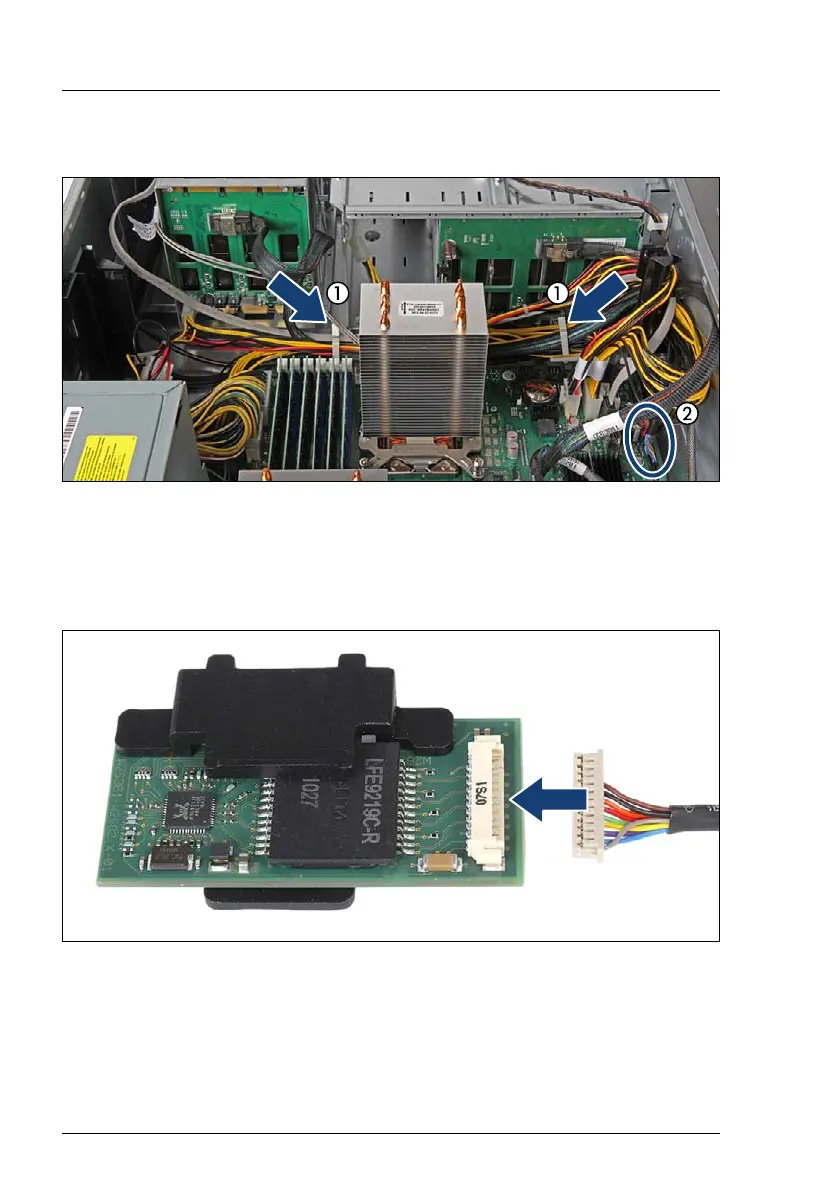

Figure 256: Securing front panel cables
Ê Run the front panel cables through the cable guides (1).
Ê Connect the front panel cable to the connector "Front Panel" on the system
board.
Figure 257: Connecting the front LAN cable to the front LAN board
Ê If applicable, connect the front LAN cable to the front LAN board.
