I Replacing the intrusion switch cable is illustrated by the example of
the 2.5-inch HDD model. In case of the 3.5-inch HDD model, the
procedure is identical, although the HDD bay top cover looks slightly
different.

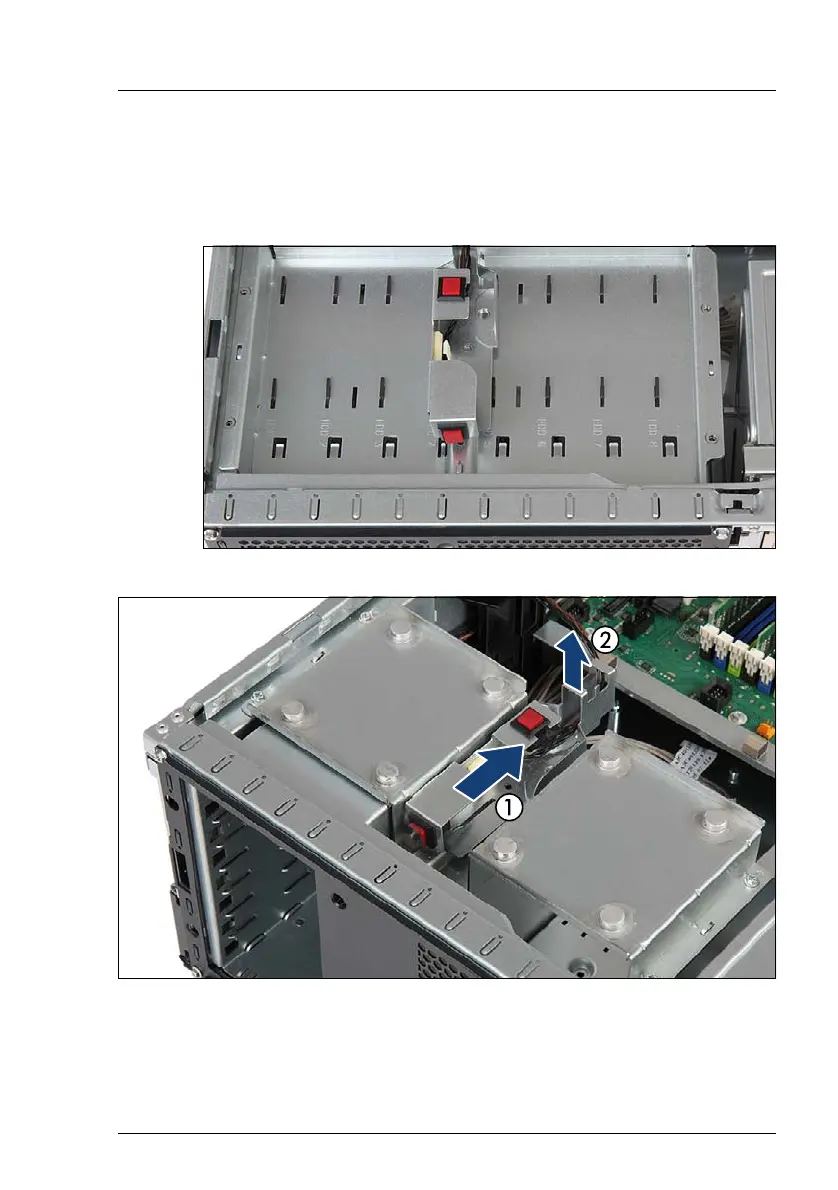

Figure 321: Intrusion switch holder in 3.5-inch HDD configurations
Figure 322: Removing the intrusion switch cable (B)
Ê Slide back the intrusion switch holder until it disengages from the HDD bay
top cover (1).
Ê Remove the defective intrusion switch holder (2).
