52 Upgrade and Maintenance Manual
TX150 S8 / TX200 S7
Basic hardware procedures

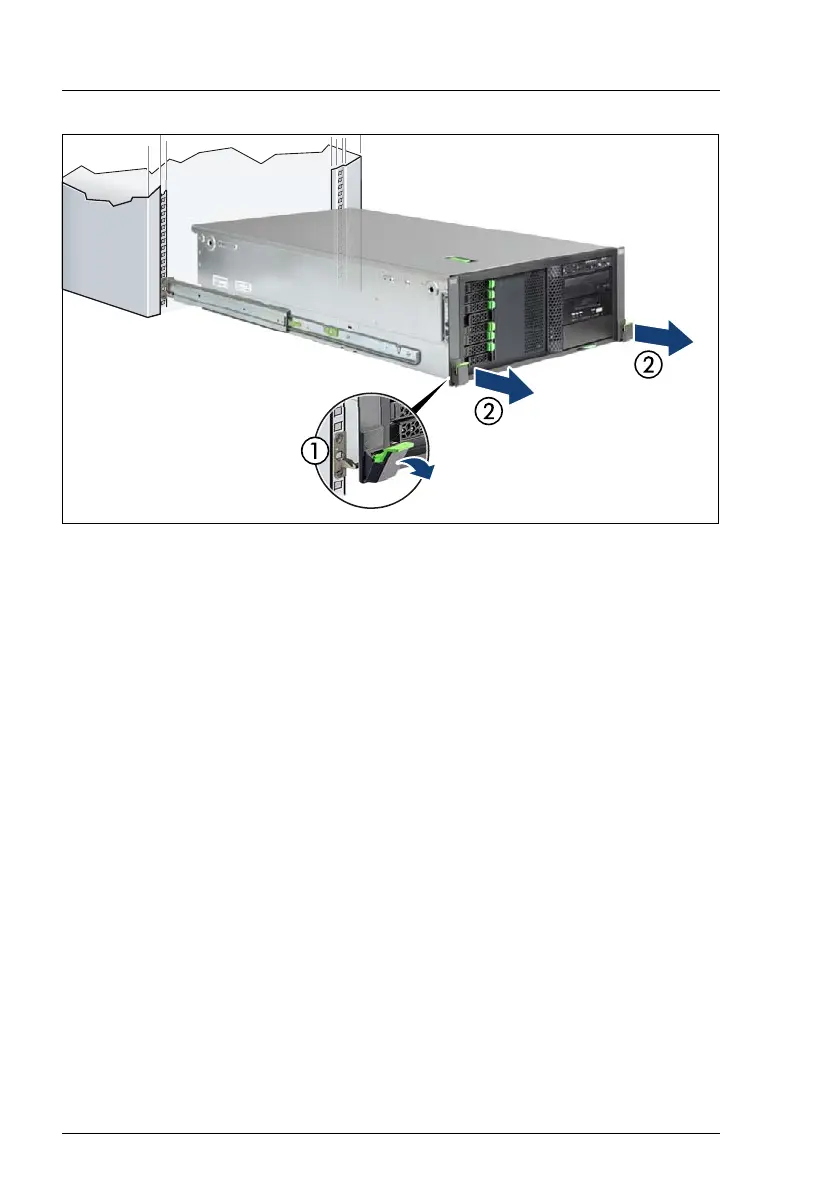

Figure 3: Extending the server out of the rack
Ê Remove all remaining external cables from the rear connector panel and
expansion cards (see section "Connectors and indicators" on page 419).
Ê If you are not using a cable mounting arm (CMA kit), ensure that the rear
cables are long enough not to be strained or damaged when extending the
server out of the rack.
Ê Fold down the two quick release levers (1) and pull the server out of the rack
until it locks in place (2).
V CAUTION!
Do not use the extended server as a surface on which to put things or as
a work surface, and strictly avoid leaning on or against it.
