HAIMA 7 - Page 520

Safety airbag system
T-56
Warning:
If the safety airbag module incorrectly installed on
the tire, the release of module may result in serious
personnel injury. When the safety airbag module is
installed on the wheel, the module shall face
upwards.

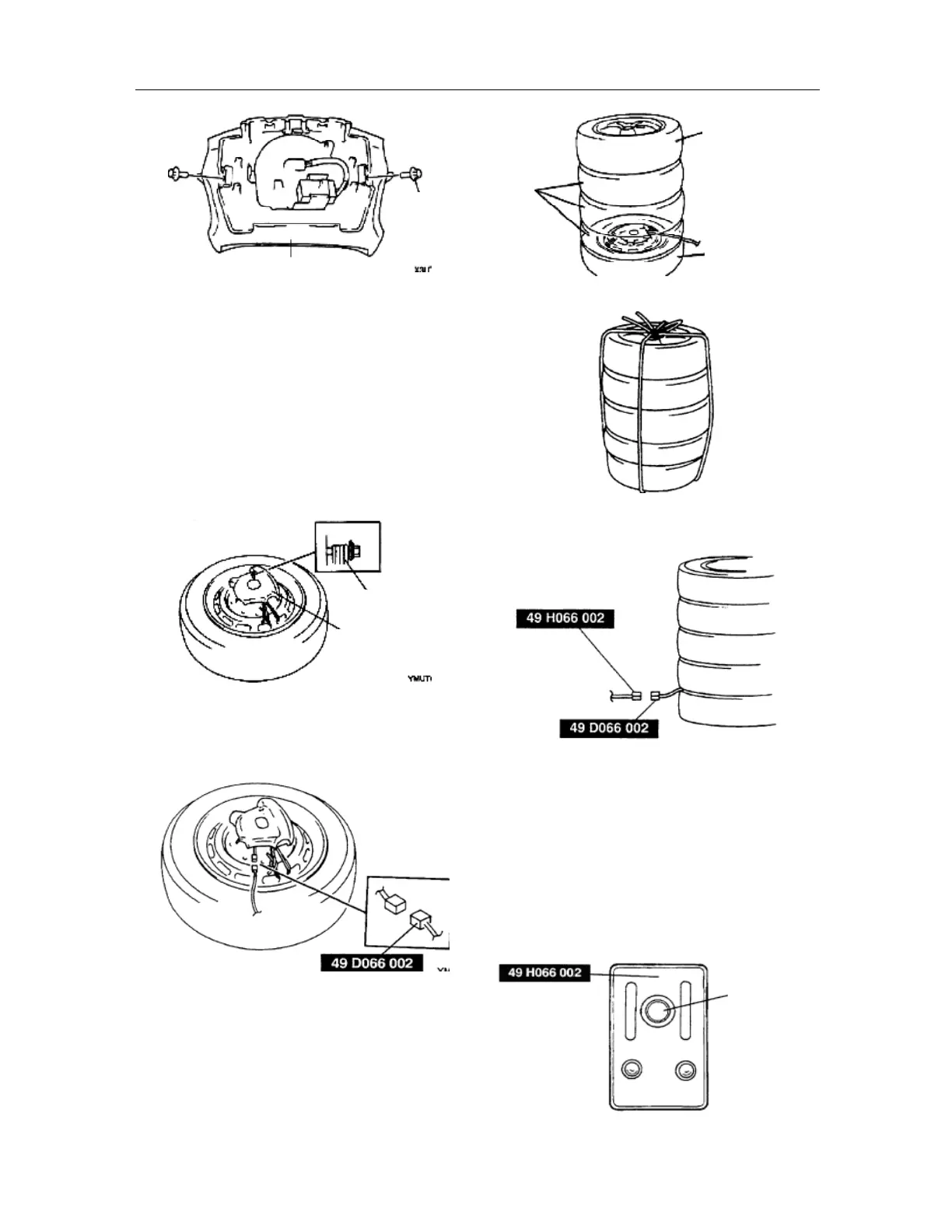

Place the driver-sided safety airbag module on the
center of wheel module upward and fix the safety
airbag module on the tire. Pass a cable through the
wheel and bundle up the bolt at least 4 circles.
4. As shown in Fig., connect the switch harness of
special tool with the driver-sided safety airbag
module.
5. Place three tires on the wheel with the safety
airbag module, and one tire with rim on 4 tires.
6. Use wires to bundle up all tires.
7. Connect the special release tool with the switch
harness of special tool.
8. Connect the red clamp of special release tool
with battery positive terminal, and the black
clamp with battery negative terminal.
9. Confirm that the red light on the special release
tool is lit.
10. Be sure that all staff stay at least 5m {20ft}
away from the vehicle.
11. Press the trigger switch on the special release
tool to release the driver-sided safety airbag
module.
Bolt
Modul
e conn
ector
of driver
-
side
safety airbag
Modul
e connector
of
driver-side safety airbag
Wire
Tire with rim
Tire with the modul
e
of
driver-side safety airbag
Tire
Trigger
switch
