HAIMA 7 - Page 521

Safety airbag system
T-57
Occupant-sided safety airbag module
1. Remove the occupant-sided safety airbag
module.
2. Install the bolts on the occupant-sided safety
airbag module.
Warning:
If the safety airbag module incorrectly installed on
the tire, the release of module may result in serious
personnel injury. When the safety airbag module is
installed on the wheel, the module shall face the
center of tire.

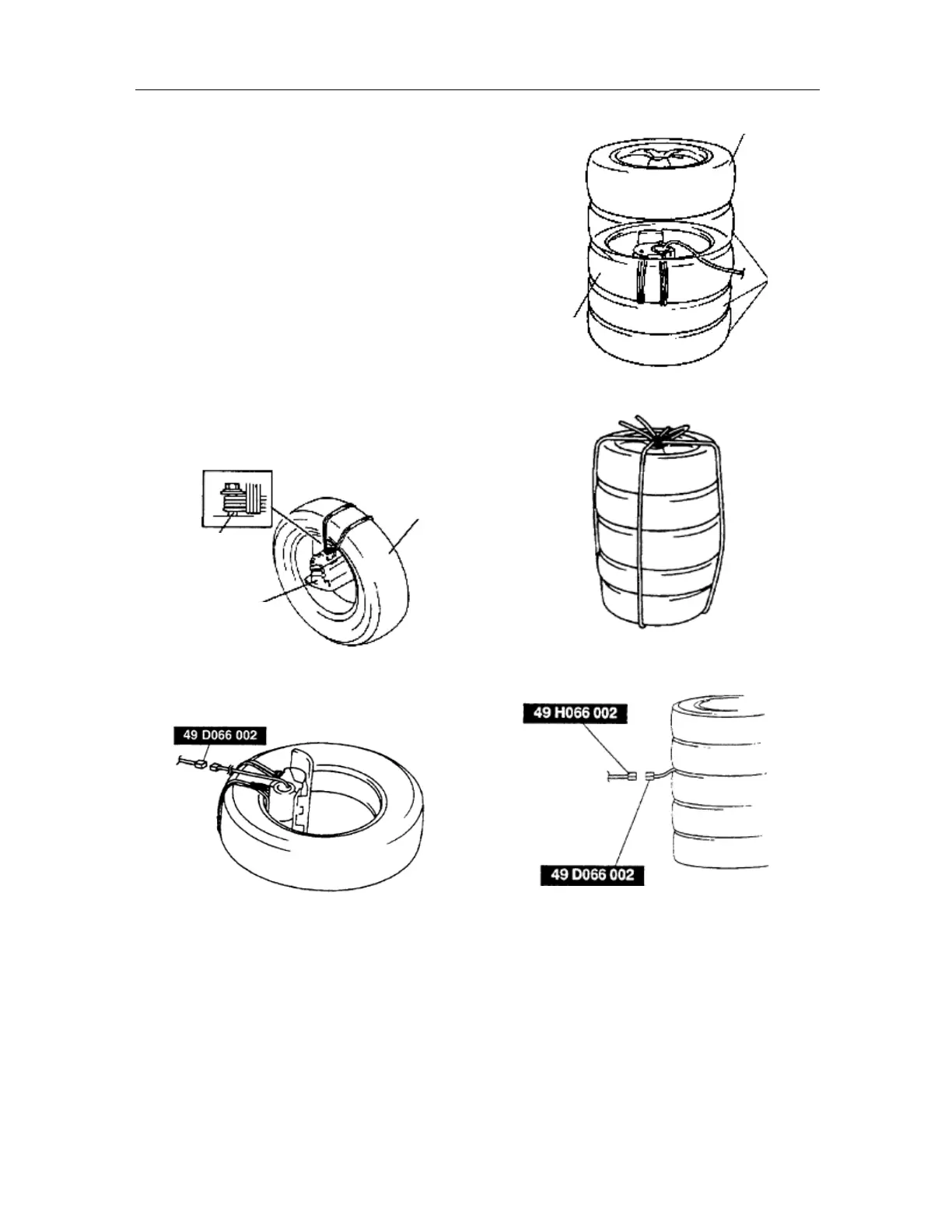

3. Bund up the occupant-sided safety airbag
module on the tire with the module facing the
center of tire. Pass a cable through the wheel
and bundle up the bolt at least 4 circles.
4. As shown in Fig., connect the switch harness of
special tool with the occupant-sided safety
airbag module.
5. Stack the tires with the occupant-sided safety
airbag module on 2 tires, and one tire on 3 tires,
and another tire with rim on 4 tires.
6. Use wires to bundle up all tires.
7. Connect the special release tool with switch
harness of special tool.
8. Connect the red clamp of special release tool
with battery positive terminal, and the black
clamp with battery negative terminal.
9. Confirm that the red light on the special release
tool is lit.
10. Be sure that all staff stay at least 5m {20ft}
away from the vehicle.
11. Press the trigger switch on the special release
tool to release the occupant-sided safety airbag
module
Tire
Wire
Modul
e
of occupant
-side safety airbag
Tire
Tire with rim
Modul
e
of
occupant-side
safety airbag
