Safety airbag system
T-58
Pretensioning safety belt
1. Remove the pretensioning safety belt.
Warning:
If the safety airbag module incorrectly installed on
the tire, the release of pretensioning part may result
in serious personnel injury. When the pretensioning
safety belt is installed on the tire, it shall be posed in
the tire.

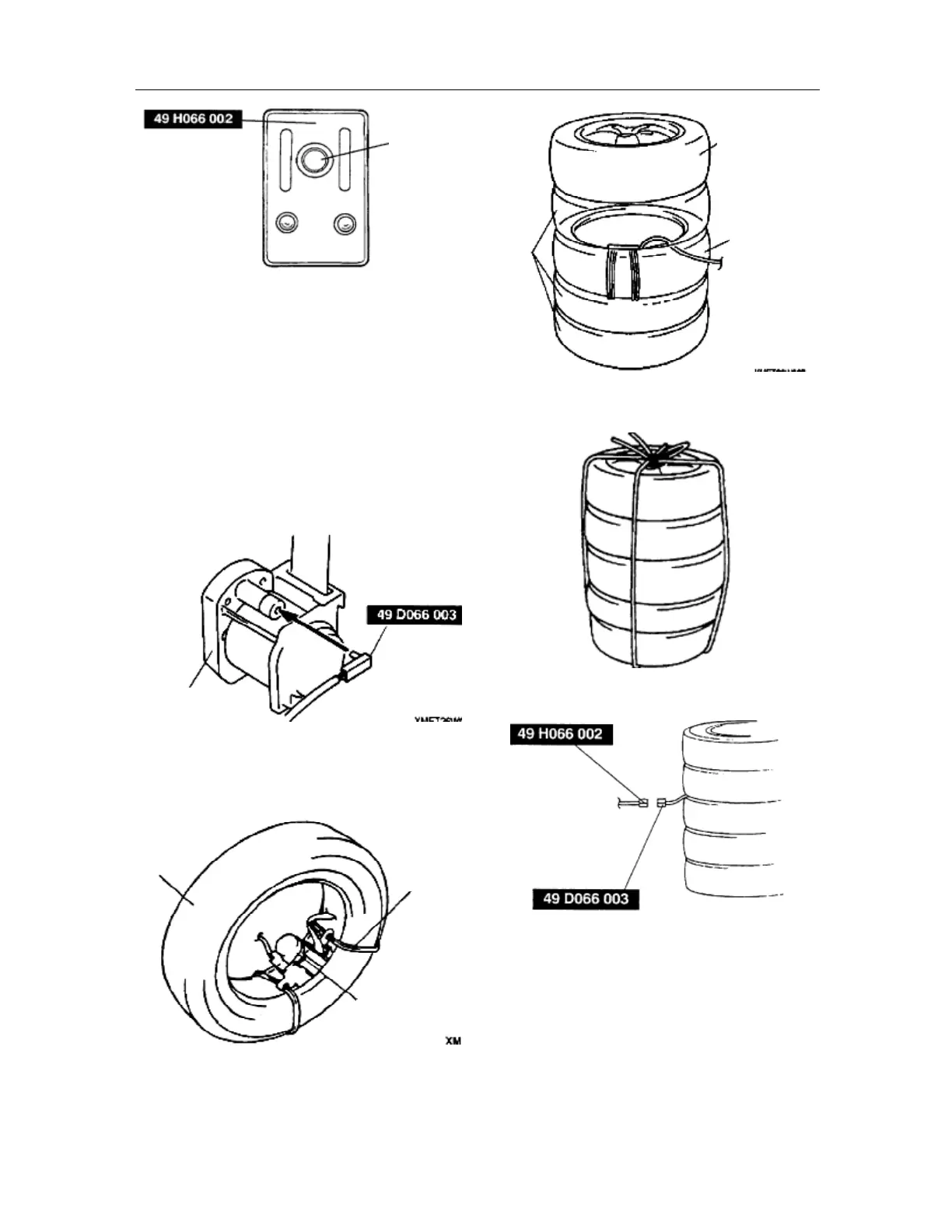

2. As shown in Fig., connect the switch harness of
special tool with the pretensioning safety belt.
3. Bundle up the pretensioning safety belt and fix
it in the tire, pass wires through the tire and
bundle up the pretensioning safety belt at least
4 circles.
4. Stack the tire with the pretensioning safety belt
on 2 tires, one on 3 tires and another with the
rim on 4 tires.
5. Bundle up all tires with wires.
6. Connect the special release tool with the switch
harness of special tool.
7. Connect the red clamp of special release tool
with battery positive terminal, and the black
clamp with battery negative terminal.
8. Confirm that the red light on the special release
tool is lit.
9. Be sure that all staff stay at least 5m {20ft}
away from the vehicle.
10. Press the trigger switch on the special release
tool to release the pretensioning safety airbag
module.
Trigger
switch
Pretensioning
safety belt
Tire
Wire
safety belt
Tire with rim
Tire
belt
