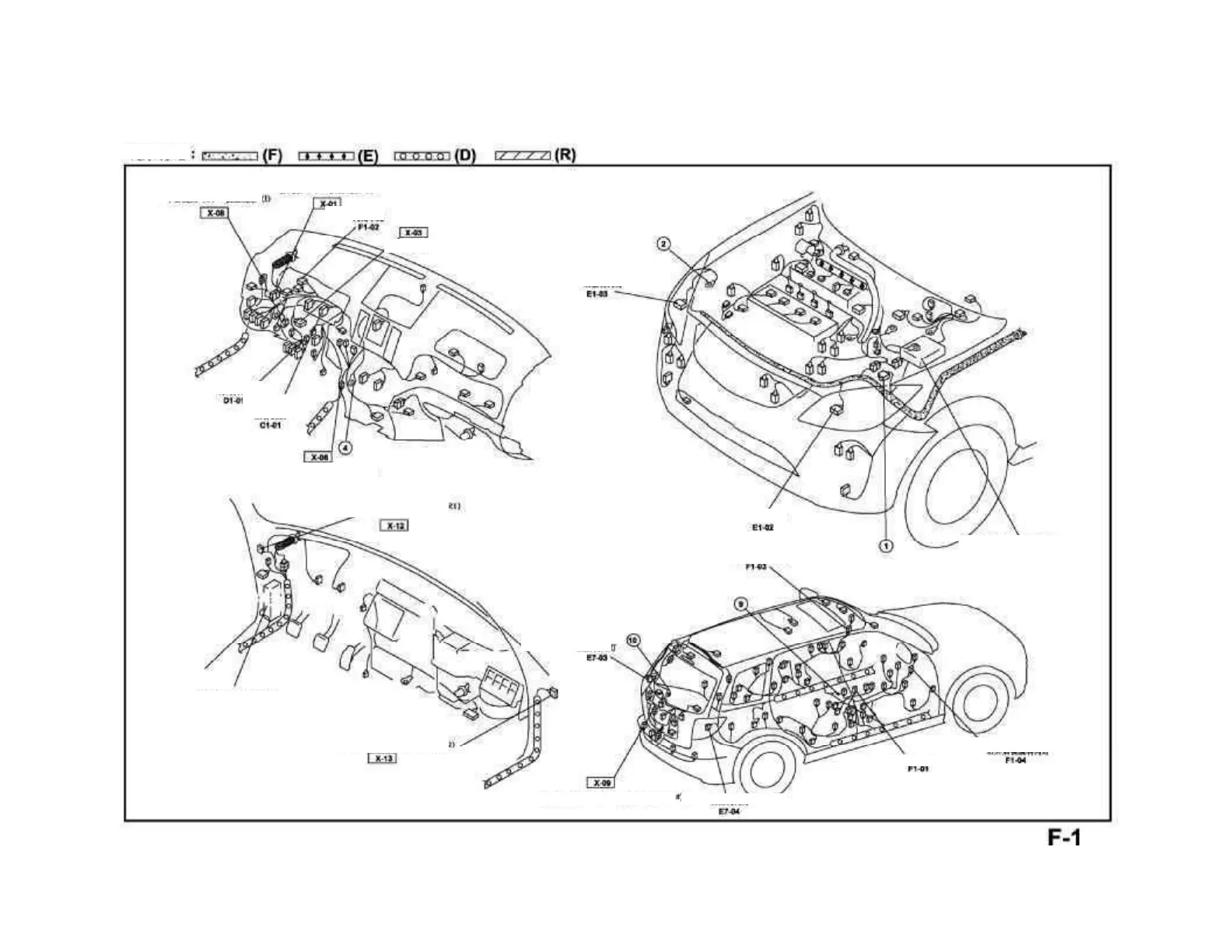

Mark on harness:
Middle harness (D) -
Instrument harness (I)
Junction box (see section JB)
Fuse block (see section
Front harness (F) -
Instrument harness (I)
Flash unit
Ignition switch
Steering switch
Combination
instrument
Middle harness (D) -
Instrument har
ness (I)
Middle harness (D) –
front
door harness (DR1)
Middle harness (D) –
front
door harness (DR2)
Right front turn lamp
Left front turn lamp
Left rear turn lamp
Left outside rear
-
view
mirror / turn lamp
Right rear turn lamp
Liftgate 2# harness (R2#) - Liftgate 1# harness (R1#)
Hazard warning lamp
Right outside rear
-
view
mirror / turn lamp
