HAIMA 7 - Page 584

45

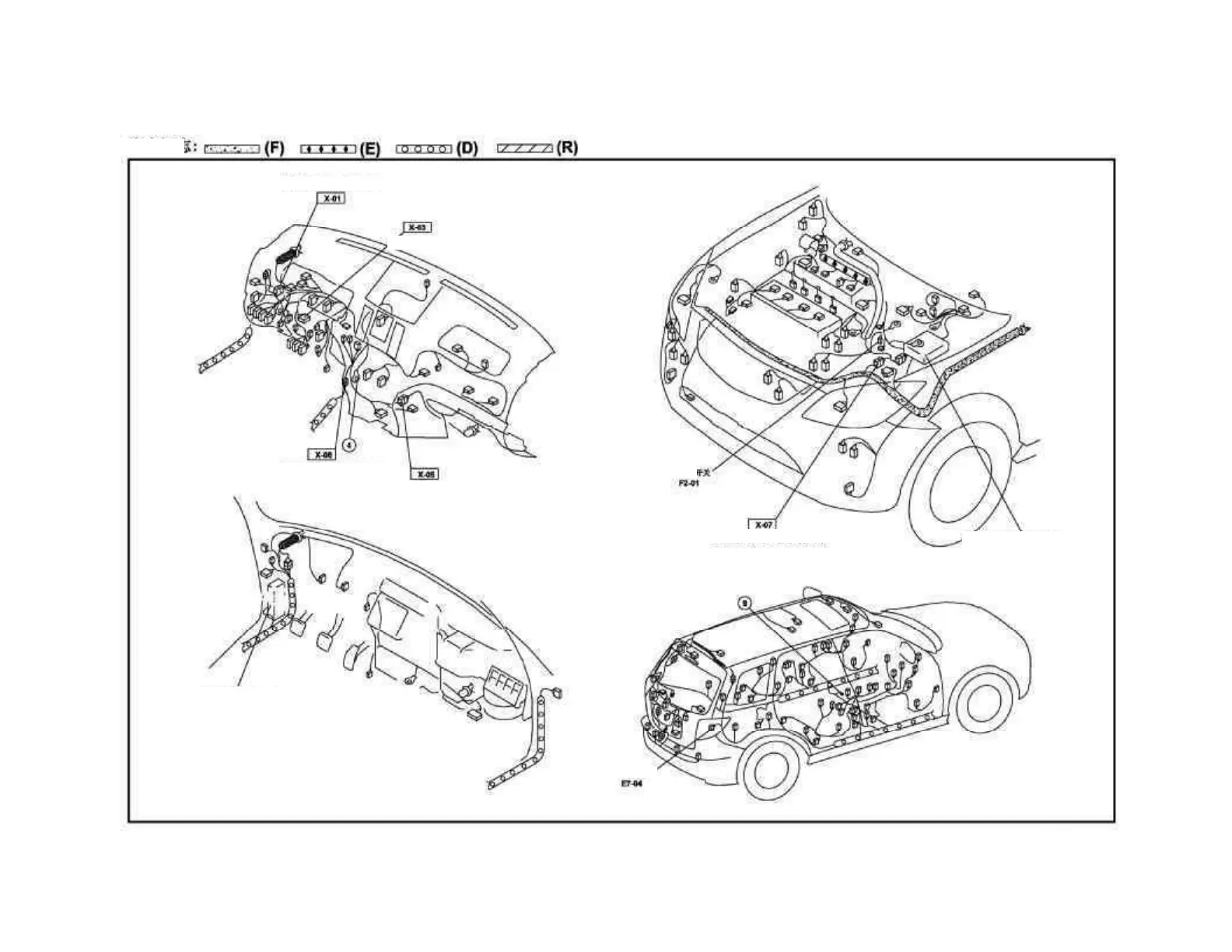

Mark on harness:
Middle harness (D) -
Instrument harness
(I)
Junction box (see section
J
B)
Fuse block (see section
Ignition switch
EM harness (EM) - Instrument harness (I)
Front harness (F) - Instrument harness (I)
EM harness (EM) - Instrument harness (I)
Backup lamp switch
Right backup lamp
Junction box (see section JB)
