51

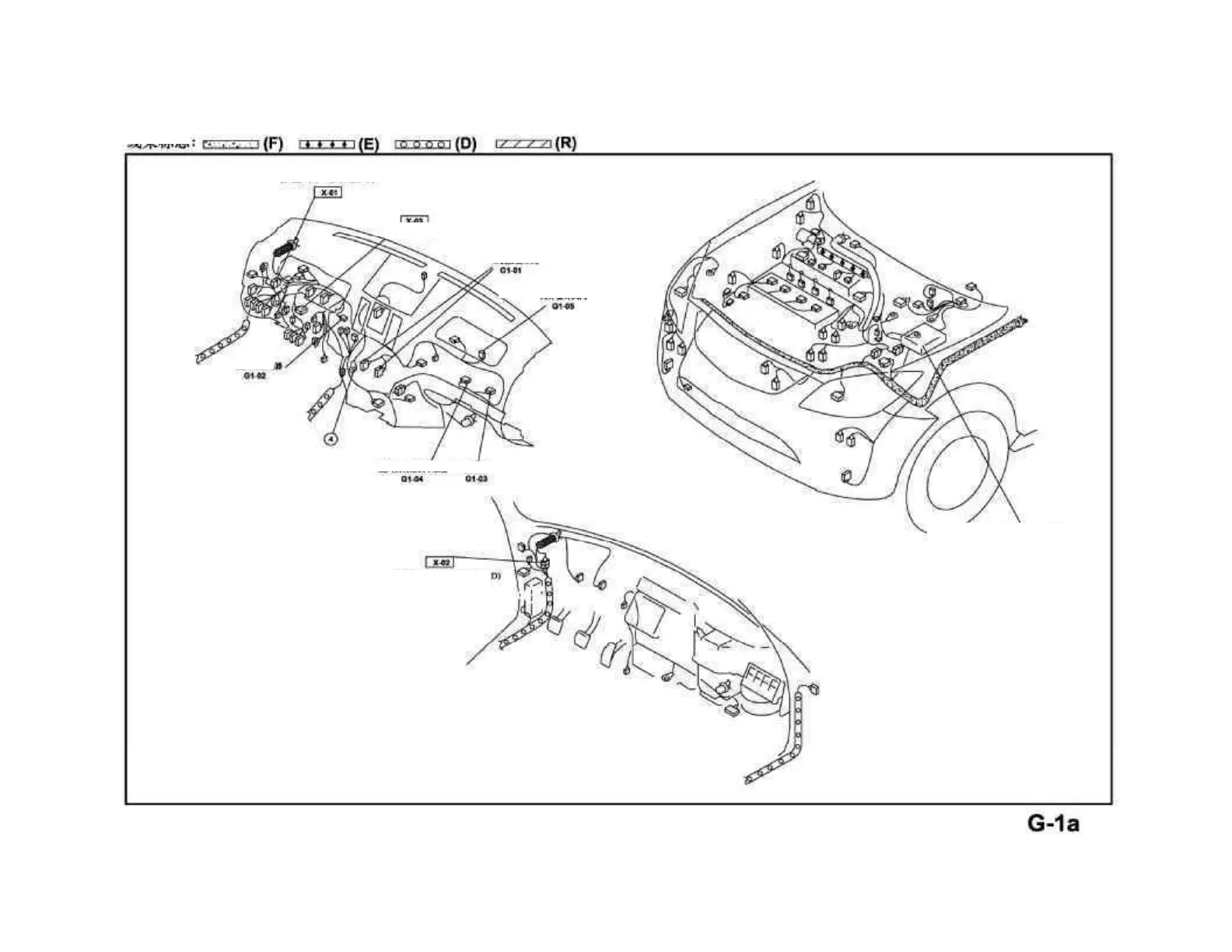

Mark on harness:
Front harness (F) - Instrument harness (I)
Fuse block (see section FB)
Front harness (F) - Middle
harness (D)
Ignition switch
A/C control unit
Circulated inside/outside air door
Blower relay
Blower
Blower speed adjuster
