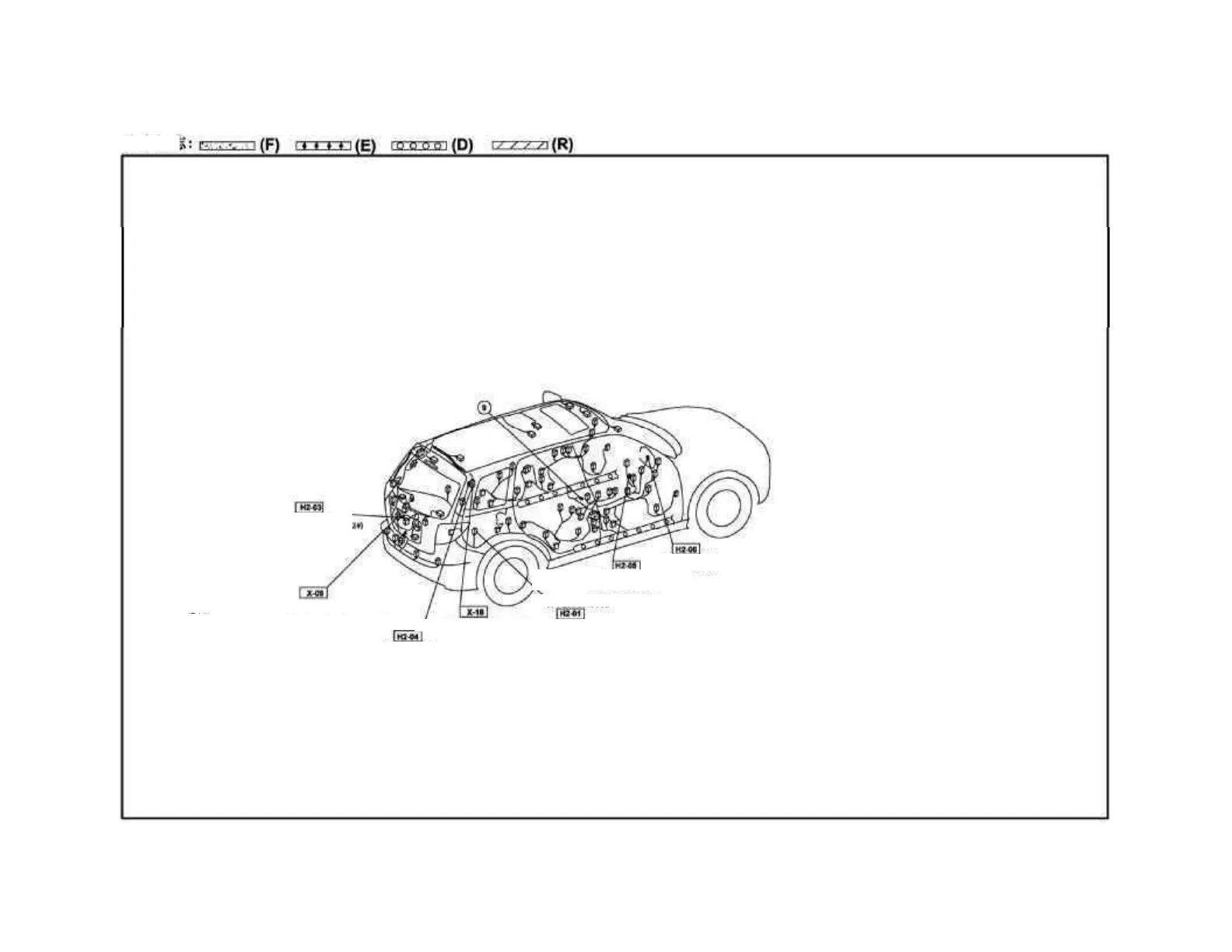

Mark on harness:
Middle harness (D)-
Liftgate 2# harness (R2#)
Video signal transmission line
Female connector (R2#)-
Male connector (D)
Liftgate 2# harness (R2#) -Liftgate 1# harness
(R1#
)
Video signal transmission line
Female connector (R1#)-Male connector
(R2#)
Video signal transmission line
Female connector (D)-Male connector (I#)
Video signal transmission line Flat square connector (I)
Backup camera control unit
