HAIMA 7 - Page 608

69

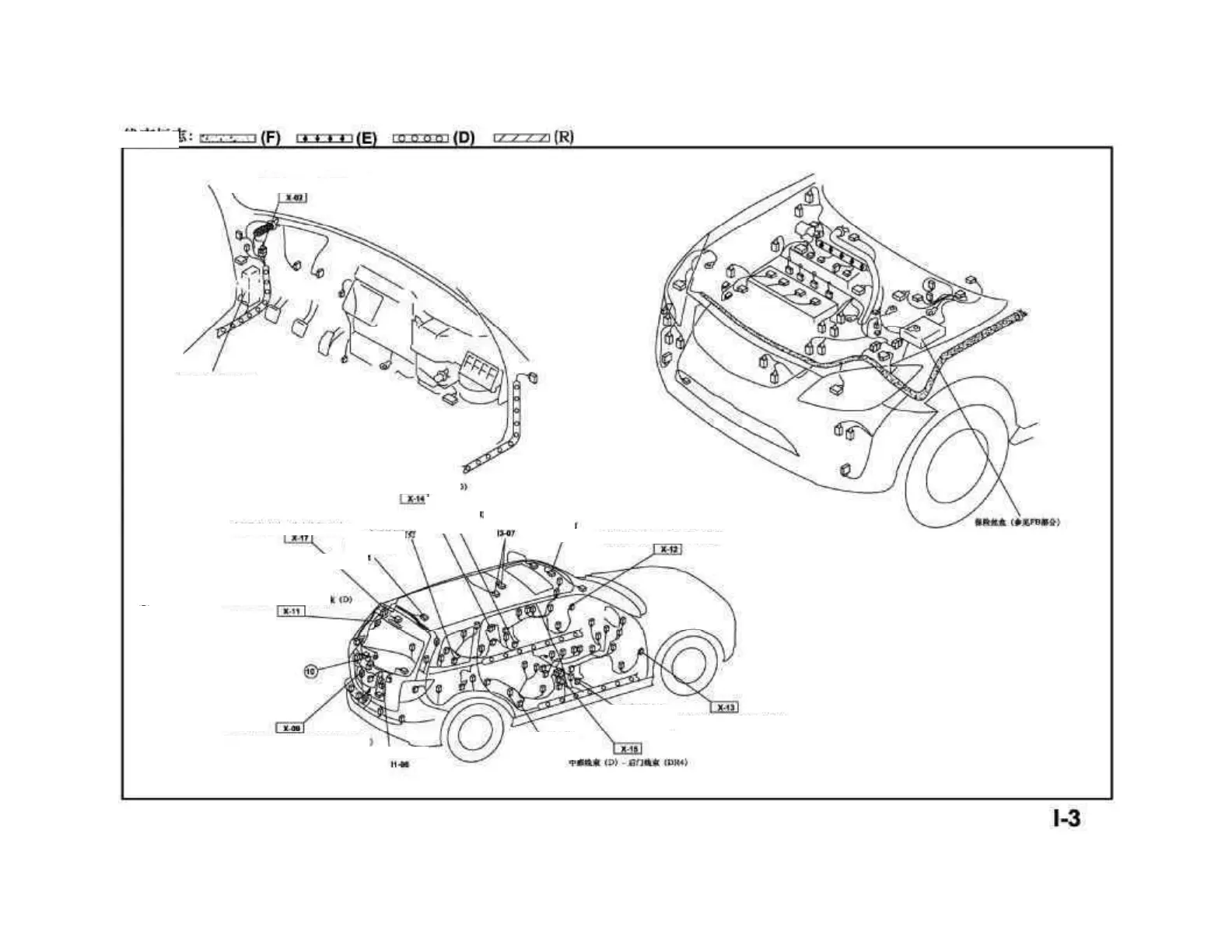

Mark on harness:
Junction box (see section JB)
Fuse block (see section FB)
Front harness (F)-
Middle harness (D)
Middle harness (D)-
rear door harness (DR3)
Middle harness (D) -Front door harness
(DR1)
Middle harness (D) -
Front door harness (DR2)
Liftgate 2# harness (R2#) -Liftgate
1# harness (R1#)
Liftgate 2# harness (R2#) - Middle harness
(D)
Middle harness (D)- Interior harness (IN)
Reading
lamp
Left front
door
courtesy
lamp
Right front do
or
courtesy lamp
Left rear door
courtesy lamp
Right rear door
courtesy lamp
Trunk lamp
Trunk lamp switch
Interior
lamp
