HAIMA 7 - Page 612

73

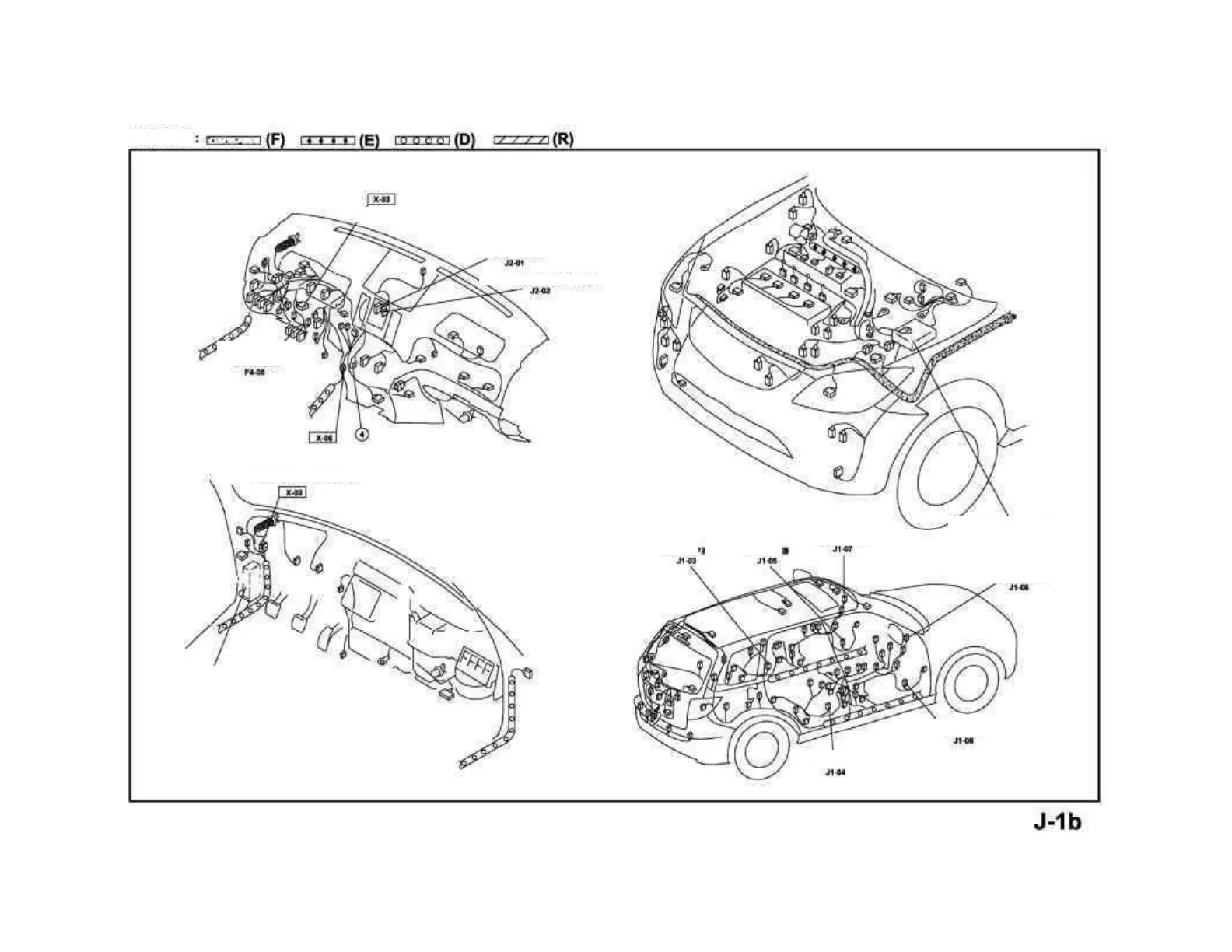

Mark on harness:
Middle harness (D)-
Instrument harness (I)
Fuse block (refer to FB
sections)
Junction box (refer to JB sections)
Front harness (F)-Middle harness (D)
Audio unit + GPS
Ignition switch
Audio system
fast key module
Backup camera signal line flat square connector
Rear left door speaker
Front left door
speaker
Rear right door speaker
Front right door speaker
Left minor high pitch
loud speaker
Right minor high
pitch loudspeaker
