Designjet Z Series — Service Manual 3-39
Service Tests (Diagnostics)
Diagnostic tests also need to be performed after removing or replacing
certain printer components. If you have removed or replaced printer
components, check the Service Calibration Guide to Removal and
Installation to see which tests and calibrations you need to perform. Refer to
Page 6-8.
Ink Delivery System

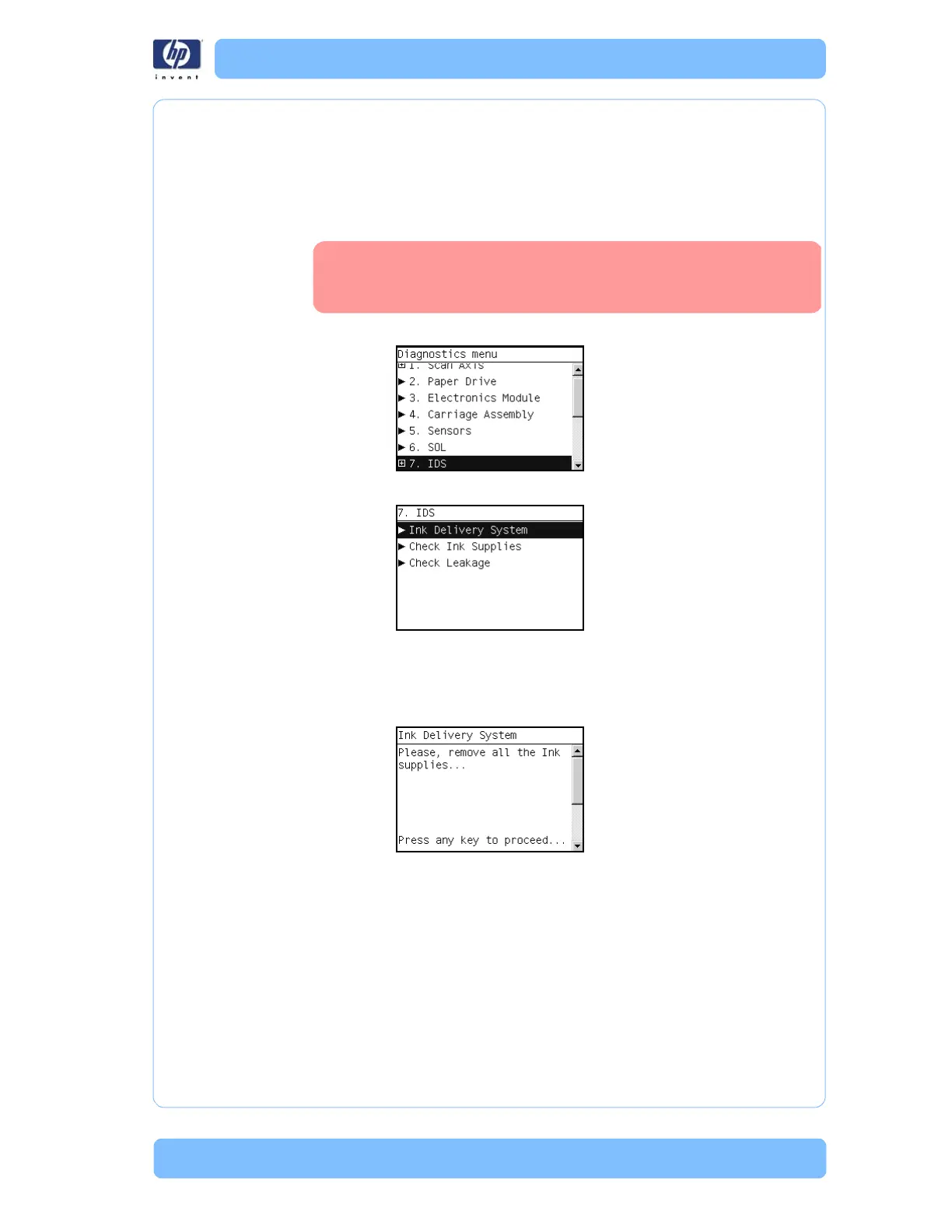

1 In the Diagnostics menu, scroll to 7. I DS and press OK.
2 The Front Panel will show the 7. IDS submenu.
3 In the IDS submenu, scroll to Ink Delivery System and press OK to start
the test.
4 The Ink Delivery System test starts and the front Panel prompts you to remove
all the Ink Supplies.
5 Remove all the Ink Cartridges.
6 Press OK to continue.
7 The test continues and the front Panel displays the following messages:
Starting Horsburgh.
Starting Mips.
Starting Nvm.
Getting Part Number.
Starting ISS Motors.
Moving Bongos down.
If you get a system error code 22.n:10 during this test,
please refer to the system error code description on Page
2-
11
for more information.
