6-76 Designjet Z Series — Service Manual
Removal and Installation
Left Spindle Holder
Removal
1. Remove the Spindle (refer to page 6-75).

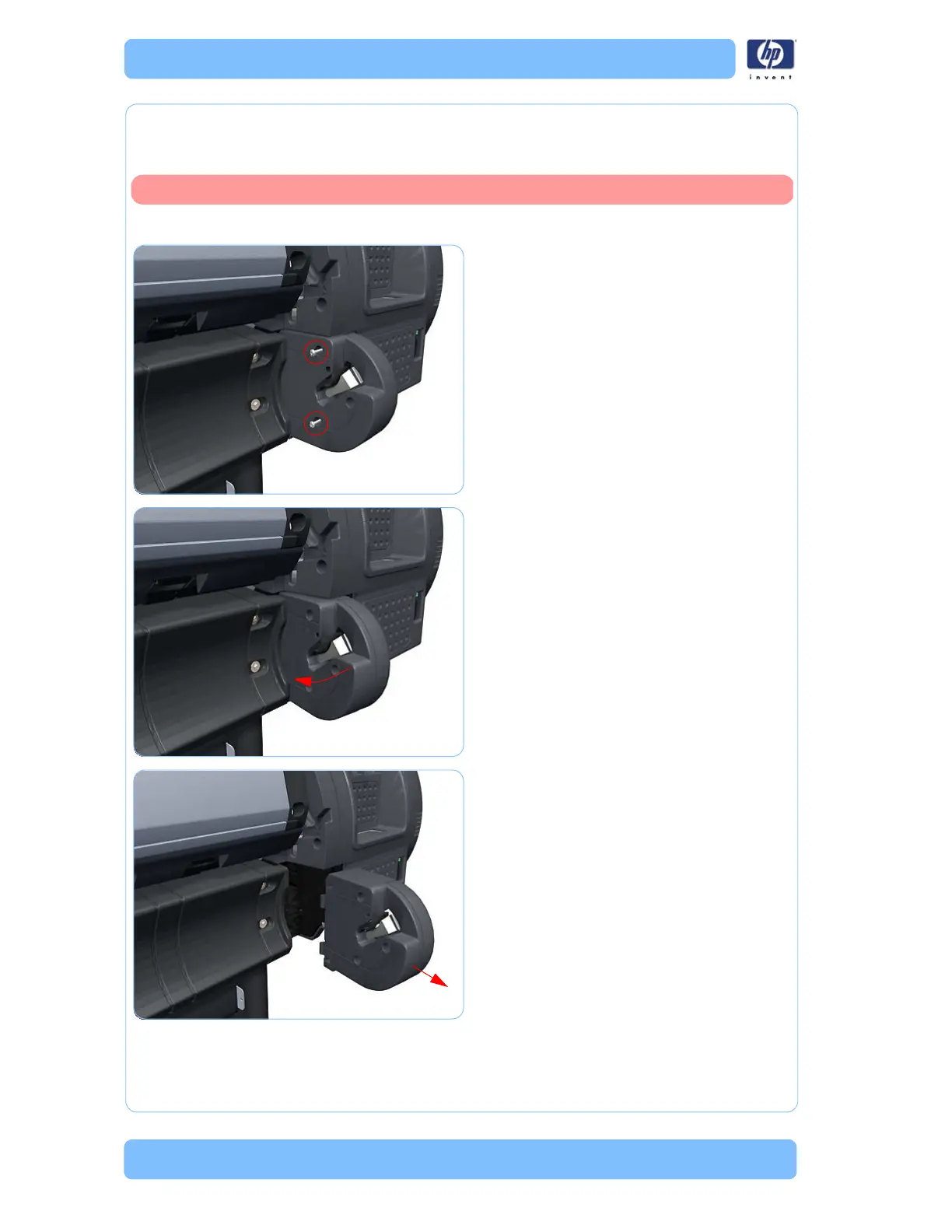

2. Remove two T-15 screws that secure the Left
Spindle Holder to the printer.
3. Rotate the Left Spindle Holder towards the
left.
4. Remove the Left Spindle Holder from the
printer.
Switch off the printer and remove the power cable.
