Designjet Z Series — Service Manual 6-175
Removal and Installation - Left Spittoon
Left Spittoon
Removal
This procedure describes how to remove the complete Left Spittoon which is
necessary to gain access to other components. If you only need to replace the
Foams of the Left Spittoon, use the protective gloves and the tweezers (provided
in the Tool Kit) to remove them with it in place.
1. Remove the Left Cover (refer to page 6-30).
2. Remove the Electronics Module (Main PCA
and PSU) (refer to page 6-163).

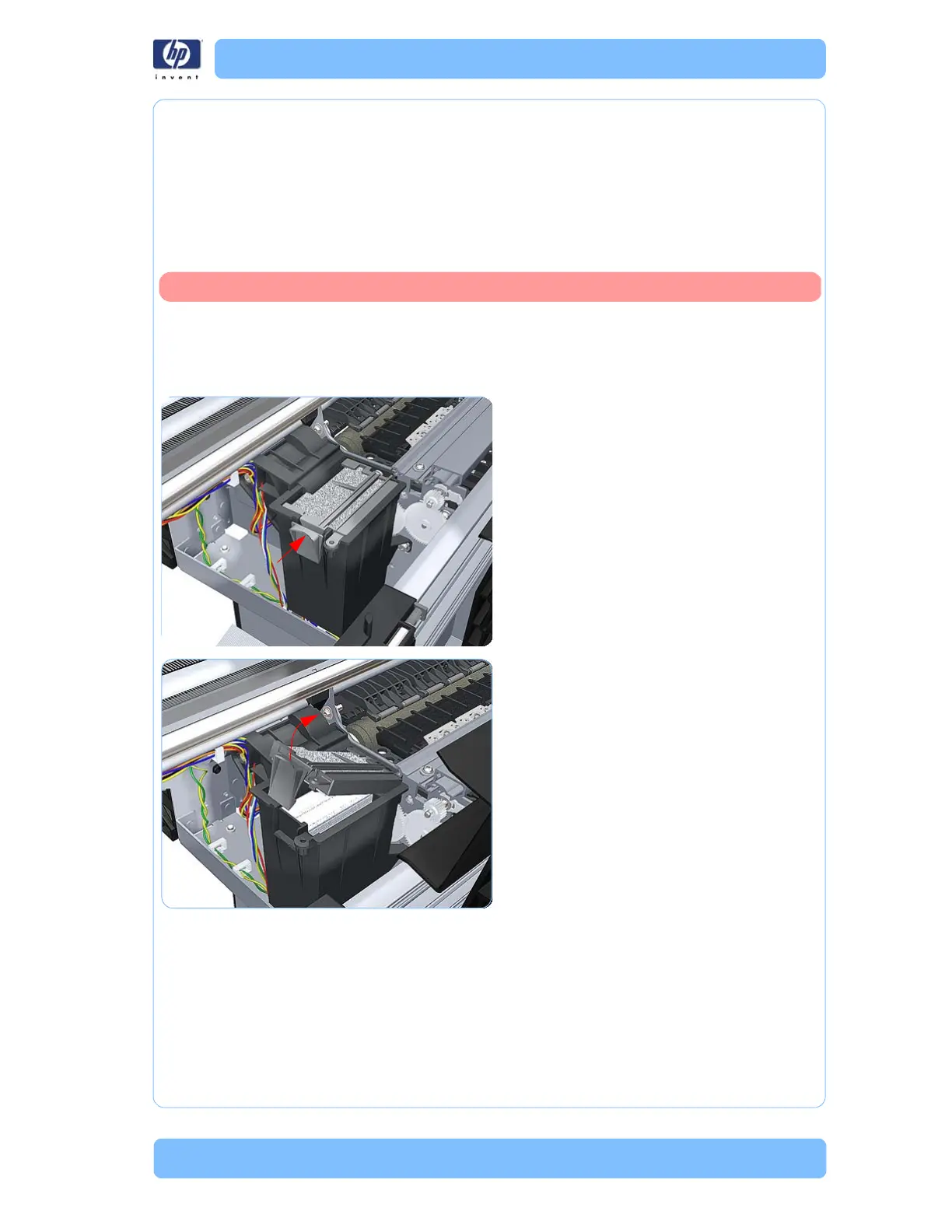

3. Unclip the Left Spittoon Retainer from the
Left Spittoon.
4. Lift the side of the Left Spittoon Retainer
with the clip.
Switch off the printer and remove the power cable.
To Next Page
