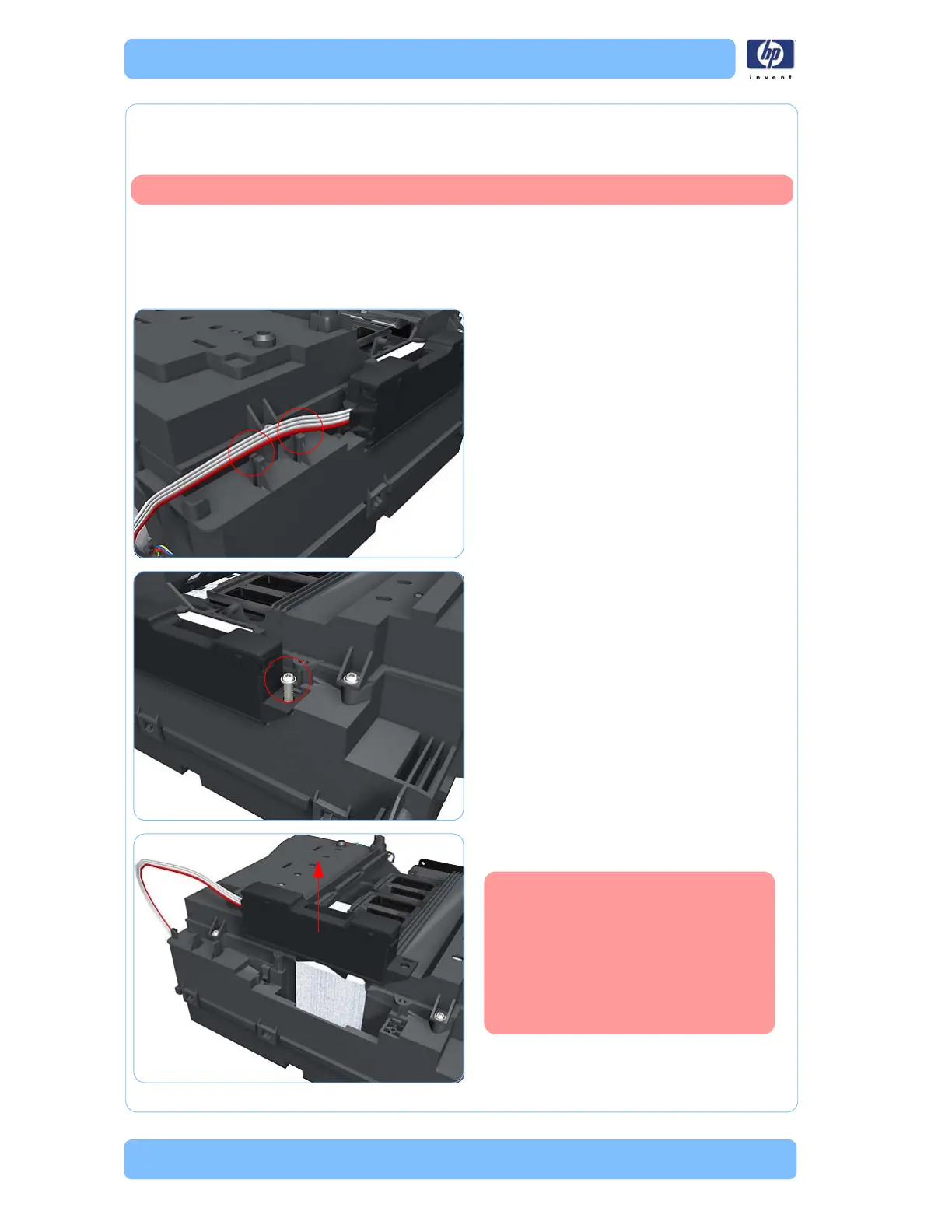

6-64 Designjet Z Series — Service Manual
Removal and Installation
Drop Detector
Removal
1. Remove the Right Cover (refer to page 6-
27).
2. Remove the Service Station (refer to page
6-60).
3. Unroute the Drop Detector ribbon cable
from the Service Station cable clamps.
4. Remove the T-15 screw that secures the
Drop Detector to the Service Station.
5. Lift the Drop Detector off the Service
Station.
Switch off the printer and remove the power cable.
When you finish installing or
replacing this component, you
must perform the necessary
Service Calibrations. To find which
calibrations you must perform,
Refer to page 6-8,
Service
Calibration Guide to Removal and
Installation
.
