6-54 Designjet Z Series — Service Manual
Removal and Installation
Window Position Sensor
Removal
1. Remove the Right Cover (refer to page 6-
27).
2. Remove the Left Cover (refer to page 6-30).
3. Remove the Front Panel (refer to page 6-
48).
4. Remove the Top Cover (refer to page 6-51).

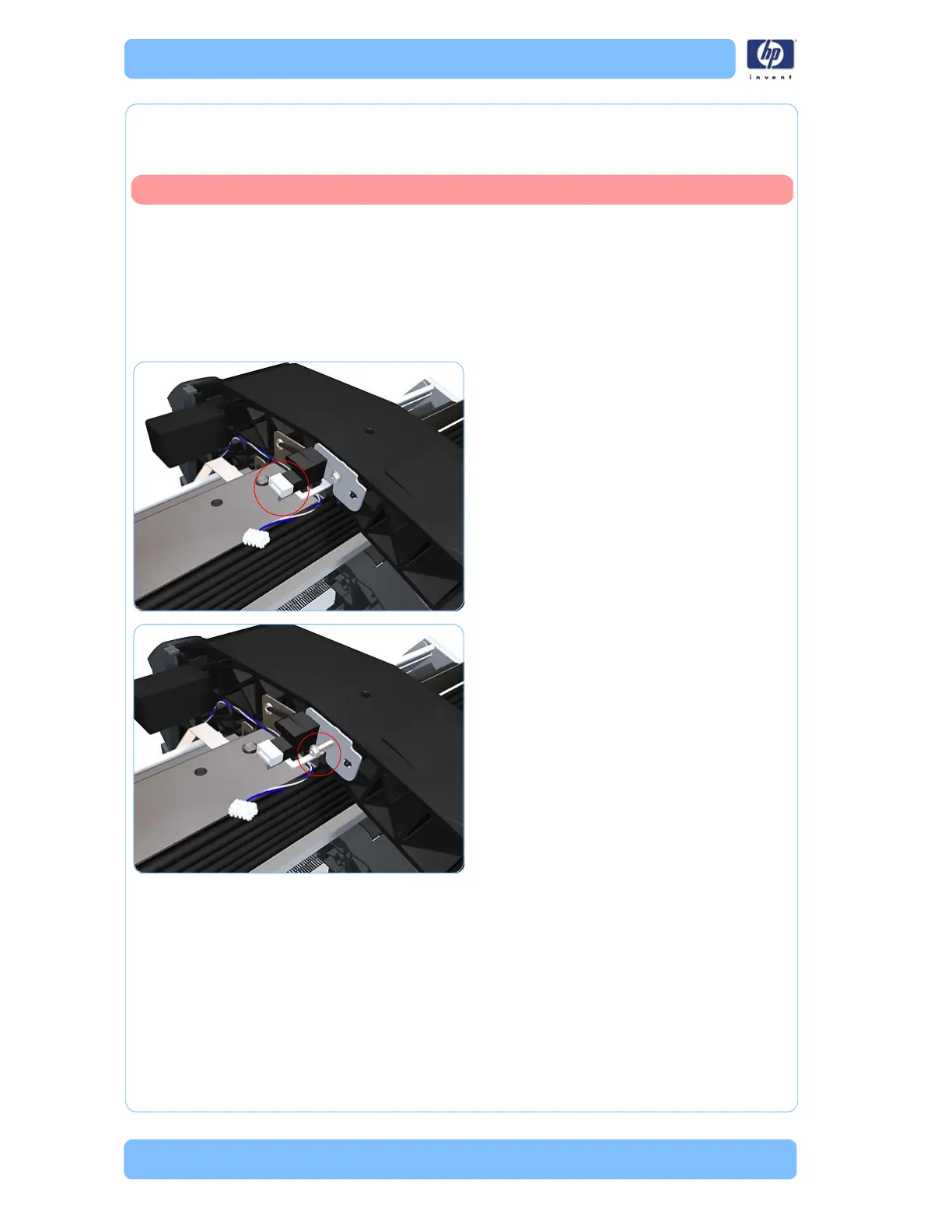

5. Disconnect the Window Position Sensor.
6. Remove one T-15 screw that secures the
Window Position Sensor to the printer.
Switch off the printer and remove the power cable.
To Next Page
