Designjet Z Series — Service Manual 6-41
Removal and Installation - Media Lever Position Sensor

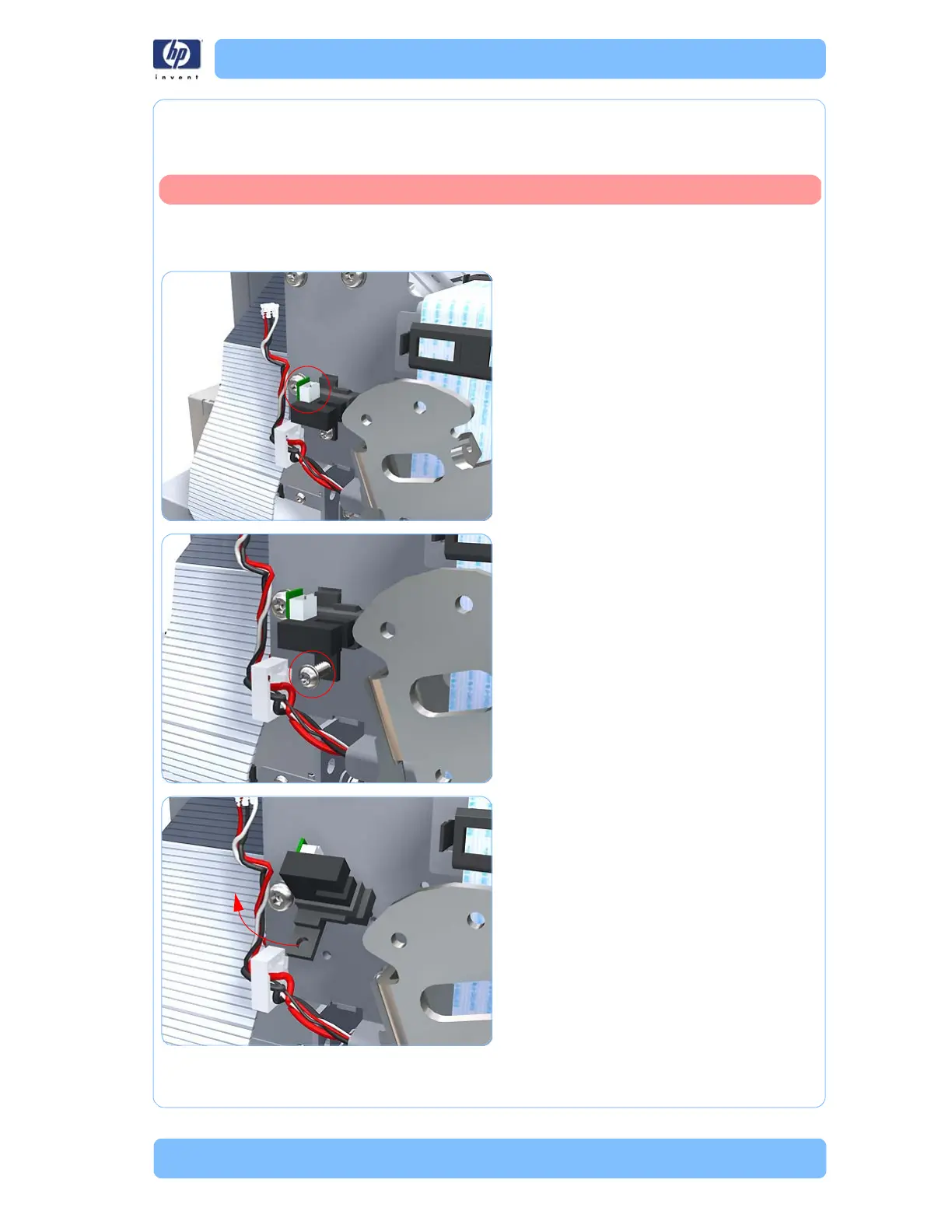

Media Lever Position Sensor
Removal
1. Raise the Media Lever.
2. Remove the Left Cover (refer to page 6-30).
3. Disconnect the Media Lever Position
Sensor.
4. Remove one T-15 screw that secures the
Media Lever Position Sensor to the Scan
Side Panel.
5. Rotate the Media Lever Position Sensor
vertically to disengage the attachment lug
from the Scan Side Panel.
Switch off the printer and remove the power cable.
To Next Page
