6-78 Designjet Z Series — Service Manual
Removal and Installation

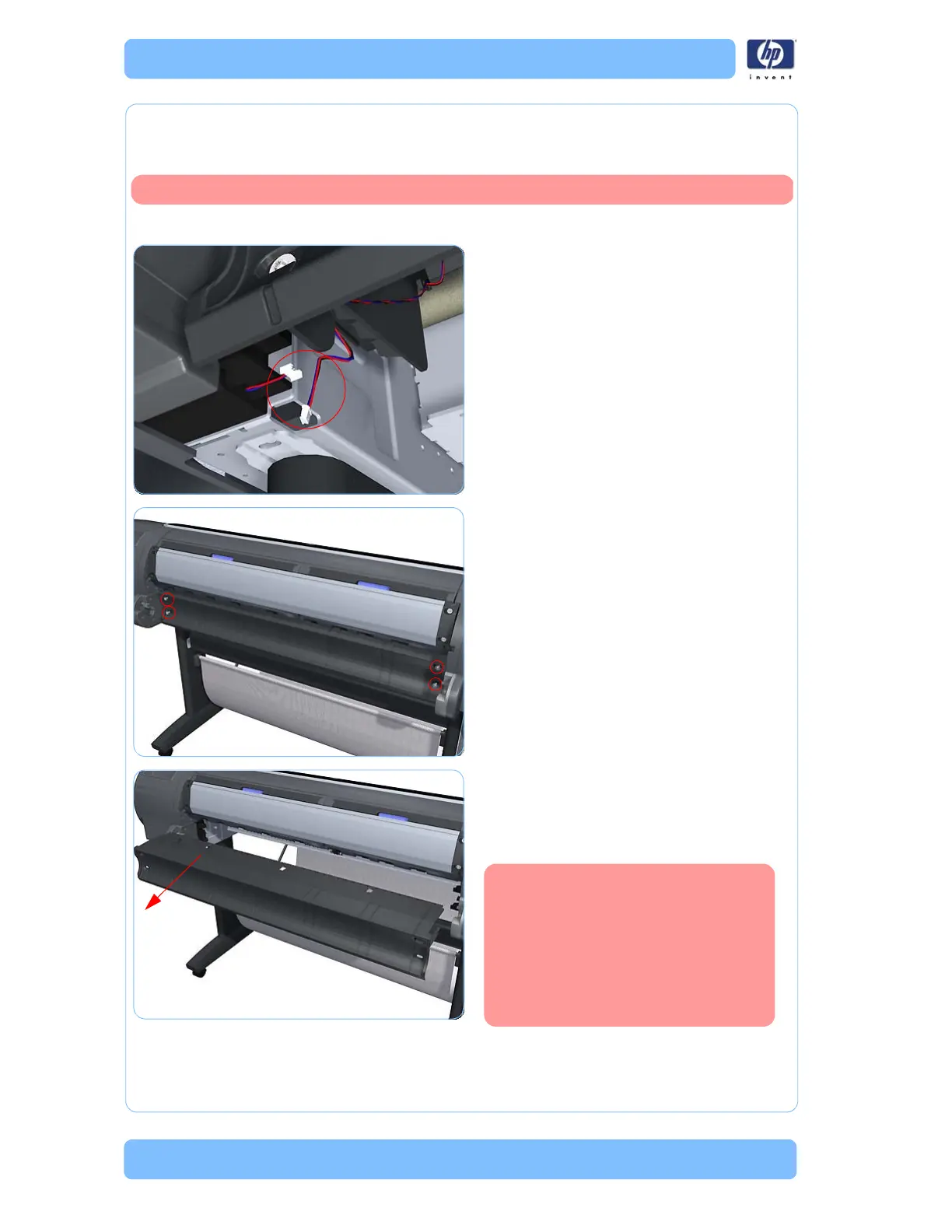

Clean Out Assembly
Removal
1. Remove the Spindle (refer to page 6-75).
2. Disconnect the Out Of Paper Sensor in-line
connector and unroute the its cable.
3. Remove the four T-15 screws that secure
Clean Out Assembly to the printer.
4. Beginning with the left side, slide the
Clean Out Assembly out of the printer.
Double check that you haven´t broken the
Out Of Paper Sensor on the left side of the
Clean Out Assembly.
Switch off the printer and remove the power cable.
Rear Tray with tray extensions shown.
Rear Tray with tray extensions shown.
When you finish installing or
replacing this component, you
must perform the necessary
Service Calibrations. To find which
calibrations you must perform,
Refer to page 6-8,
Service
Calibration Guide to Removal and
Installation
.
