6-46 Designjet Z Series — Service Manual
Removal and Installation
Left Rear Tray Support
Removal
1. Remove the Rear Tray (refer to page 6-36).
2. Remove the Right Cover (refer to page 6-
27).
3. Remove the Left Cover (refer to page 6-30).
4. Remove the Rear Cover (refer to page 6-
37).

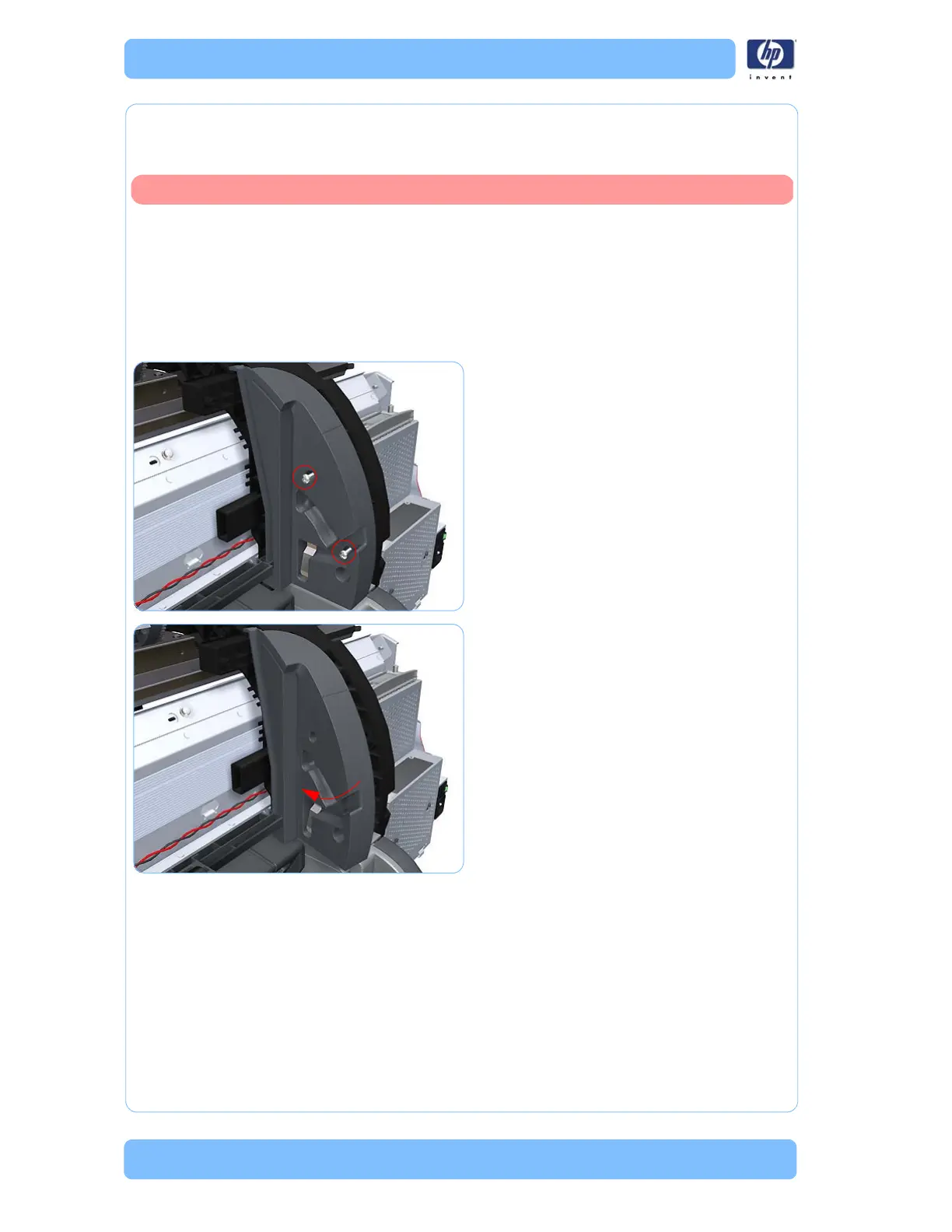

5. Remove two T-15 screws that secure the Left
Rear Tray Support to the printer.
6. Rotate the Left Rear Tray Support clockwise
approximately 30 degrees.
Switch off the printer and remove the power cable.
To Next Page
