Designjet Z Series — Service Manual 6-207
Removal and Installation - Left Starwheel Lifter
Installation

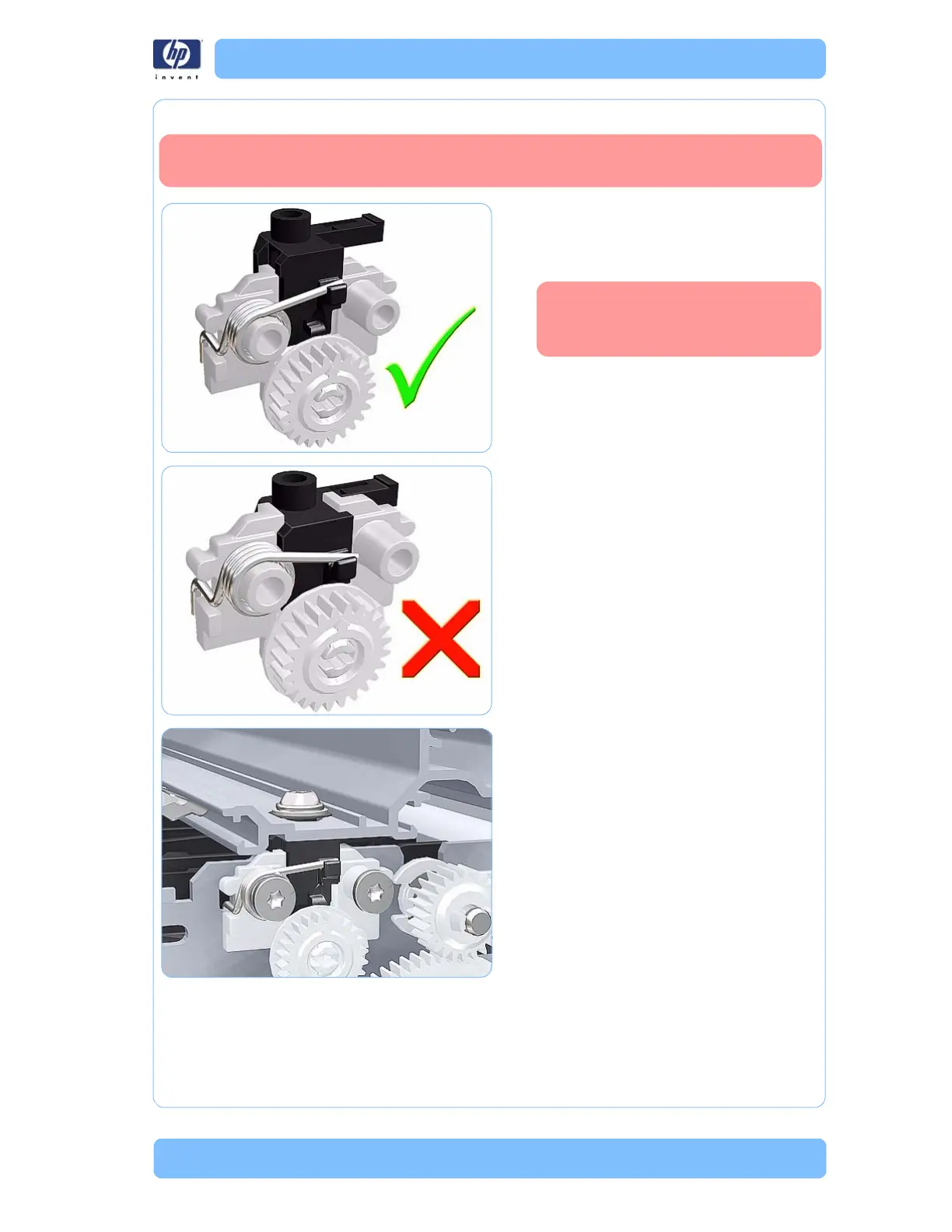

1. For Z3200/Z2100 Revision C series
printers, turn the cam gear on the left end
support until the support is in the highest
position.
2. Do not leave it in the low position.
3. When mounted, it should appear as it
does in this illustration.
The following installation procedure is used only for Z3200 printers (Q6675C)
and Z2100 Revision C printers (Q6677C).
Take care that the sping does
not jump out of the left end
support.
To Next Page
