6-36 Designjet Z Series — Service Manual
Removal and Installation
Rear Tray

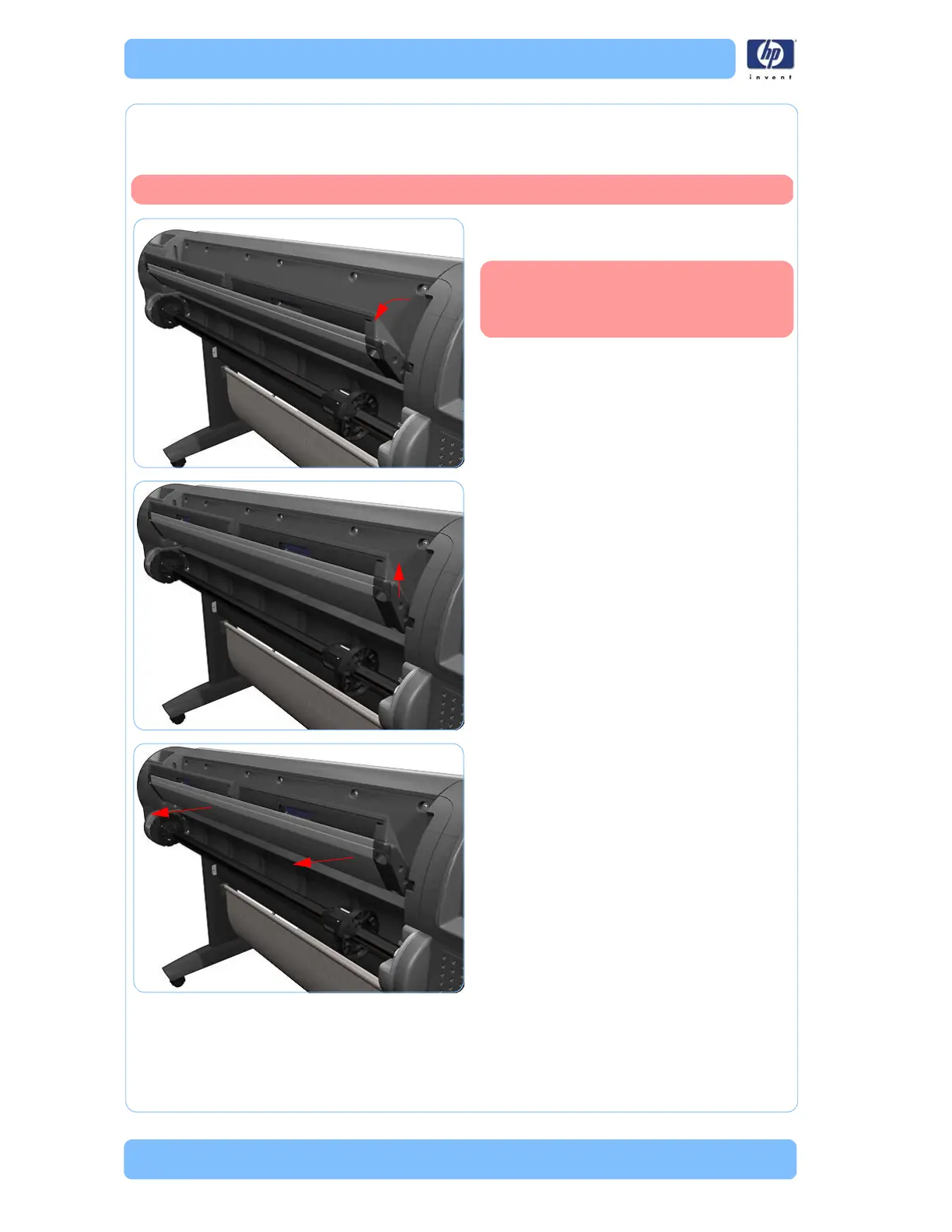

Removal
1. Open the Rear Tray to approximately 10
degrees less than the fully open position.
2. Lift the Rear Tray vertically enough
(approximately 20 mm) to allow the rear
attachment lugs to be out of the locked
position.
3. Carefully slide the Rear Tray out of the
printer.
Switch off the printer and remove the power cable.
Some printers have Rear Trays with
tray extensions and some printers
do not have extension trays.
