Designjet Z Series — Service Manual 6-83
Removal and Installation - Right Roll Guide
Right Roll Guide
Removal
1. Remove the Spindle (refer to page 6-75).
2. Remove the Clean Out Assembly (refer to
page 6-78).
3. Remove the Left Roll Guide (refer to page
6-82).

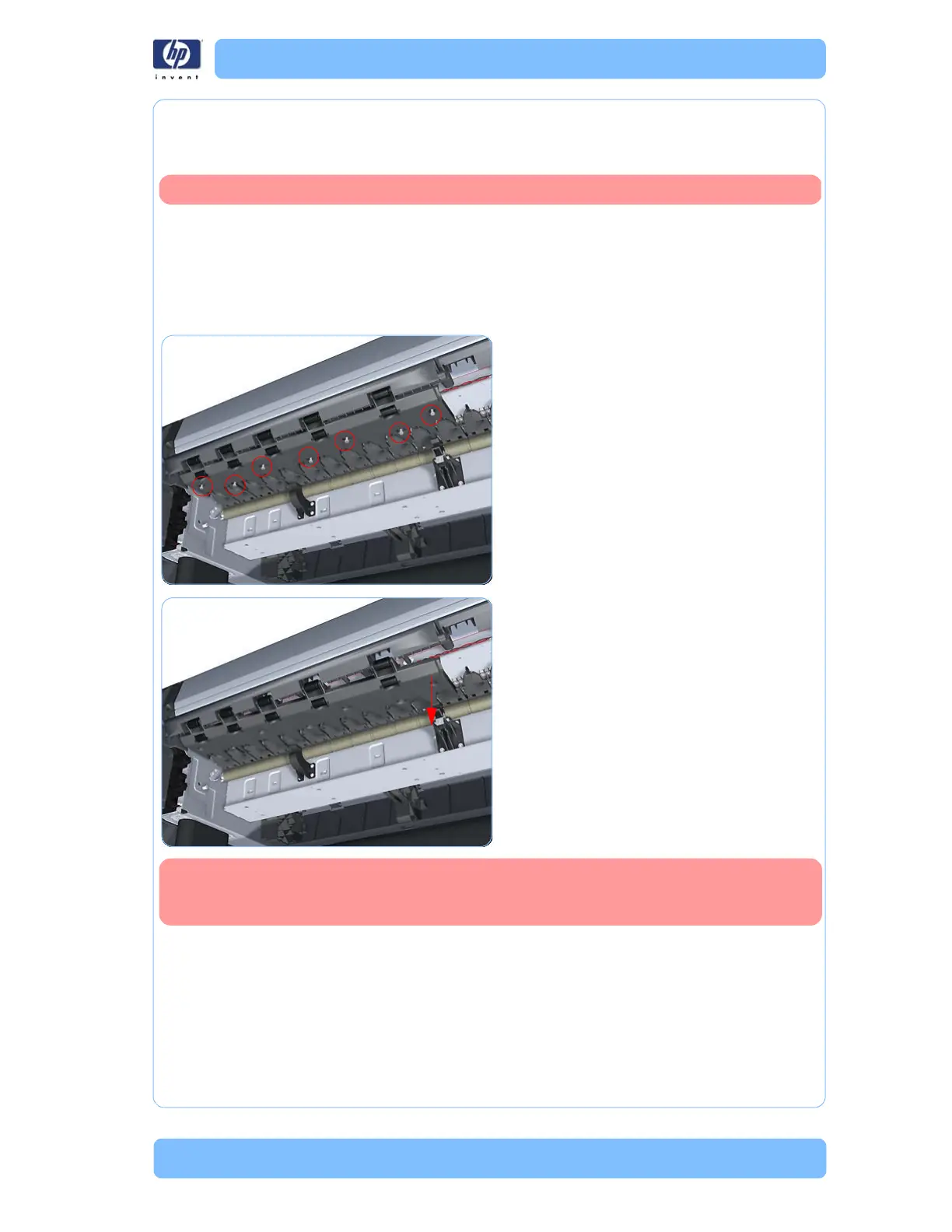

4. Remove seven T-15 screws that secure Right
Roll Guide to the printer.
5. Lower the right end and remove the Right
Roll Guide from the printer.
Switch off the printer and remove the power cable.
When you finish installing or replacing this component, you must perform the
necessary Service Calibrations. To find which calibrations you must perform,
Refer to page 6-8,
Service Calibration Guide to Removal and Installation
.
