Designjet Z Series — Service Manual 6-17
Removal and Installation - Front Cover
Front Cover
Removal

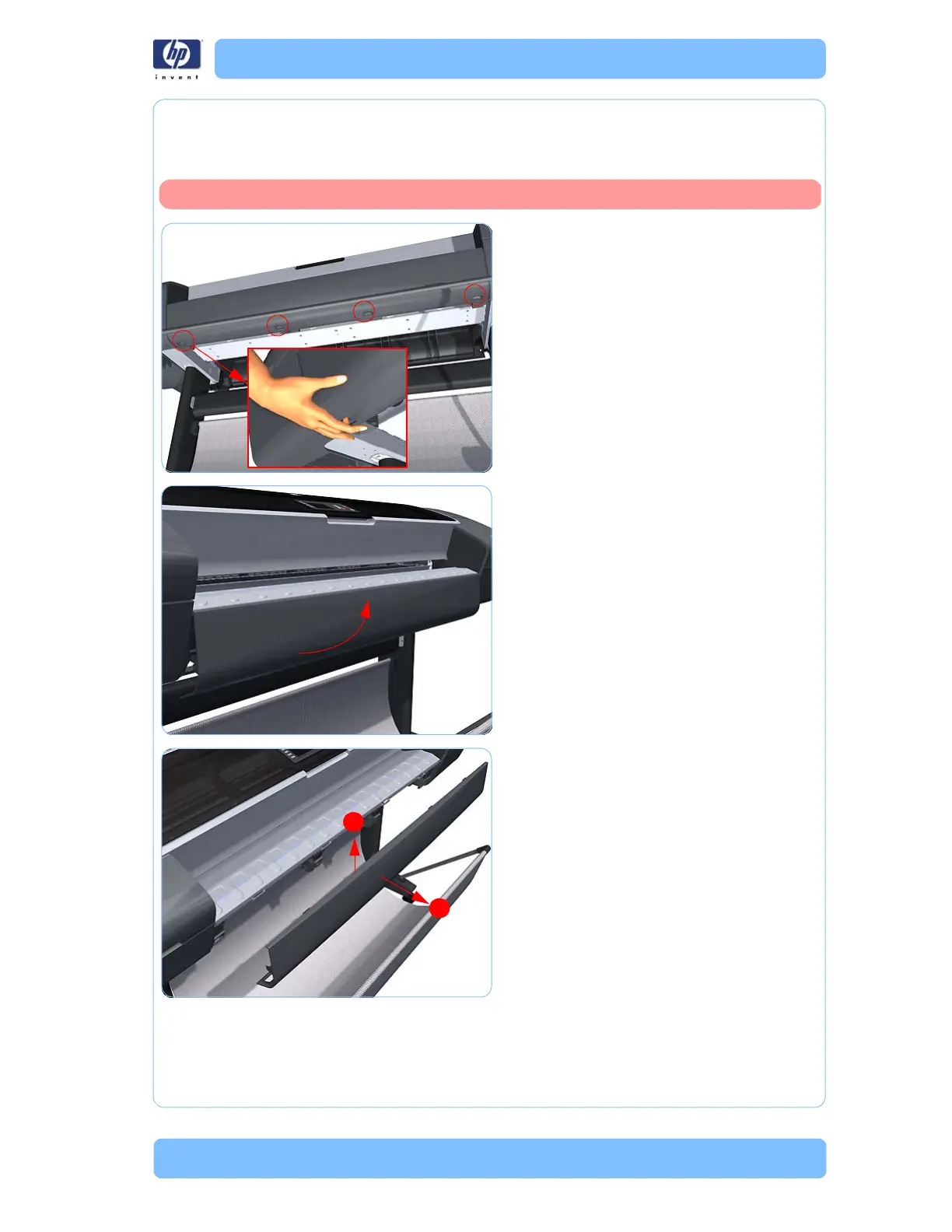

1. Squeeze each of the four attachment clips
under the Front Cover, to release the cover
from the printer.
2. Carefully pull the bottom of the Front Cover
forwards until you can release it from its
attachments.
3. Unhook the Front Cover from the four
attachments and remove it from the printer.
Switch off the printer and remove the power cable.
