Designjet Z Series — Service Manual 1-29
The Advanced Diagnostic Prints
The Advanced Diagnostic Prints
What are the Advanced Diagnostic Prints?
Advanced Diagnostic Plot. These tests provide more information of the IQ
defects found in the Image Quality Service plot.
The Advanced Diagnostic Plot is divided into the following parts:
Visual Media Advanced Diagnostic. Used to check advance reliability.
Visual Alignment Diagnostic. Used to check pen alignment reliability.
Visual Nozzle health Diagnostic. Used to check nozzle health reliability.
Force Drop Detection. Used to reset the nozzle health historic data base
and force new drop detection.

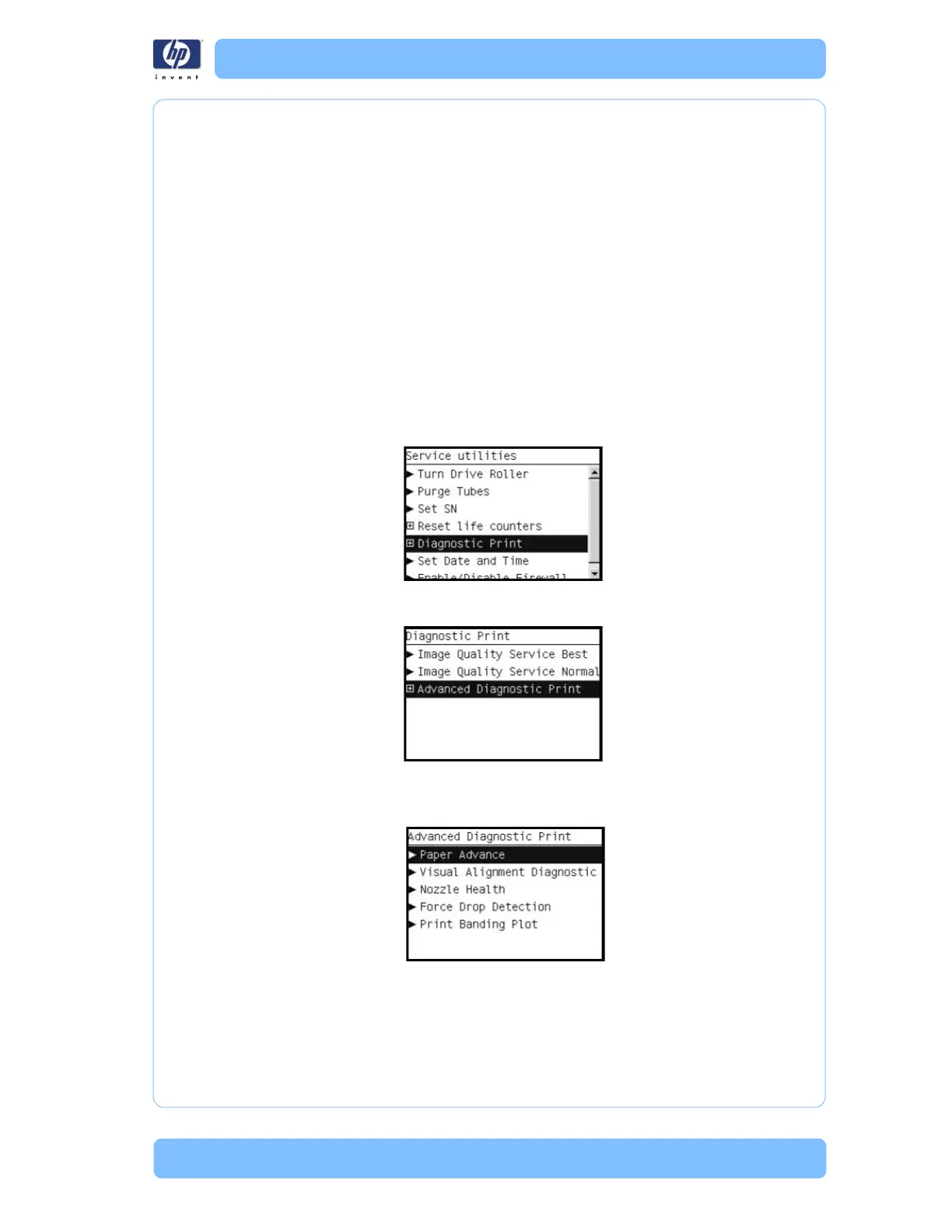

Printing the Advanced Diagnostics Print
1 In the Service Utilities submenu, scroll to “Diagnostic Print” and press OK.
2 You will be given three options. Use the Arrow keys to select the Advanced
Diagnostics menu.
3 From the displayed options, use the Arrow keys to make the required
selection Paper Advance, Visual Alignment Diagnostic, Nozzle Health, Force
Drop Detection or Print Banding Plot, and press the OK key to start printing.
