Service Tests and Utilities
3-18 Designjet Z Series — Service Manual

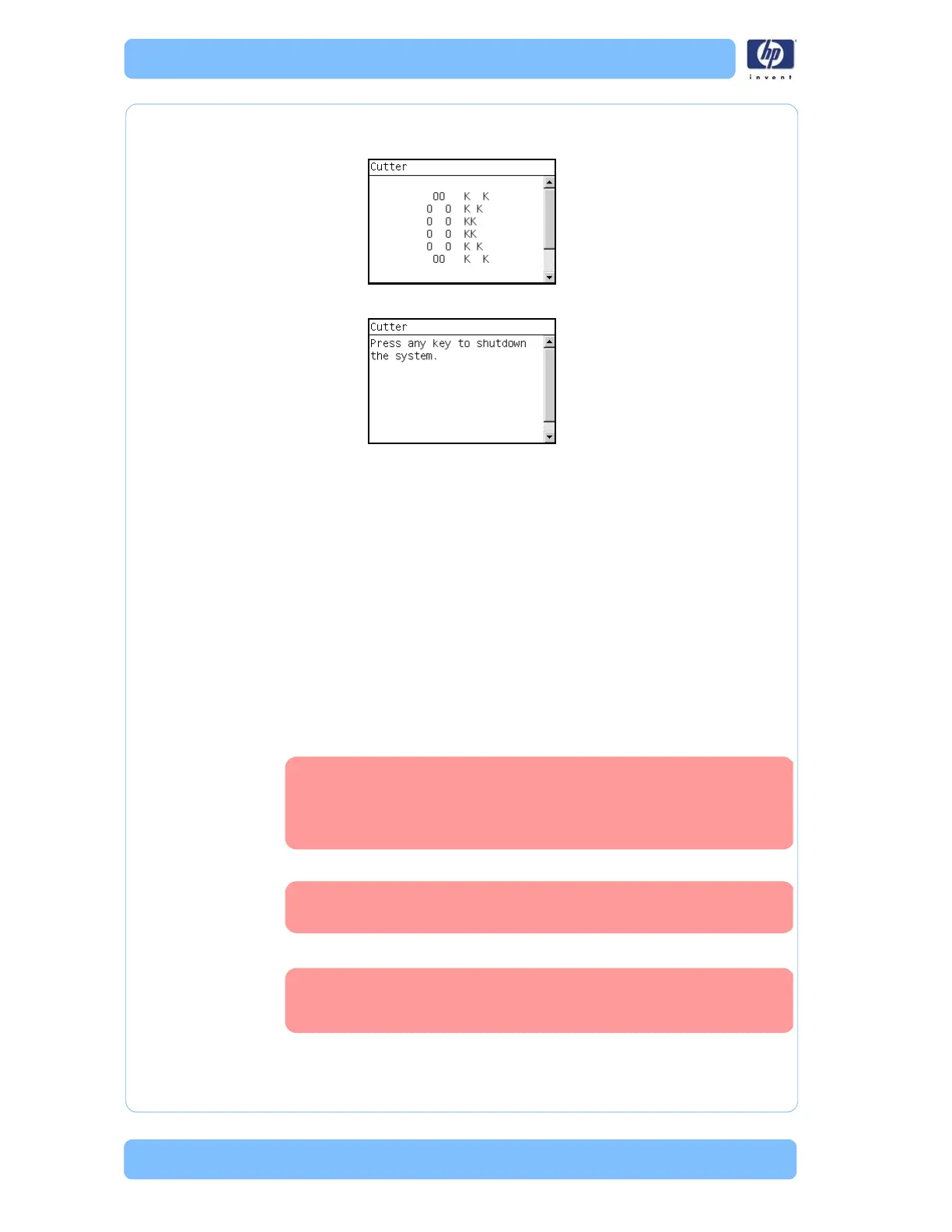

9 Press OK if the cutter worked or BACK/CANCEL if the cutter did NOT work.
10 The Front Panel shows the test complete display for a few seconds.
11 The Front Panel prompts you to shutdown the printer to complete the test.
12 Press any key to shutdown the printer.
2. Paper Drive
The Paper Drive test diagnoses Failures of components of the Media-Axis.
You must perform the Paper Drive Test after:
System Error Code 81:XZ.
System Error Code 41:XZ.
System Error Code 73:XZ.
Diagnostic tests also need to be performed after removing or replacing
certain printer components. If you have removed or replaced printer
components, check the Service Calibration Guide to Removal and
Installation to see which tests and calibrations you need to perform. Refer to
Page 6-8.
Perform the Paper Drive test as follows:
ALL THE COVER SENSORS ARE DISABLED WHEN IN THE
SERVICE TESTS MENU. IF THE CARRIAGE IS MOVING IT WILL
NOT STOP IF THE WINDOW IS OPENED, SO BE VERY CAREFUL
NOT TO PUT YOUR HANDS INSIDE.
IF POSSIBLE ALWAYS PERFORM THIS TEST BEFORE
REPLACING ANY COMPONENT OF THE MEDIA-AXIS.
Perform this test with the Printheads and the Tubes System
installed in order to get values that can be compared
correctly.
