Removal and Installation - Carriage Rear Bushing
Carriage Rear Bushing
Removal
1. Remove the Front Cover (refer to page 6-
17 ) .
2. Remove the Right Cover (refer to page 6-
27).
3. Remove the Left Cover (refer to page 6-30).
4. Remove the Cutter Assembly (refer to page
6-43).
5. Remove the Front Panel (refer to page 6-
48).
6. Remove the Top Cover (refer to page 6-51).
7. Remove the Window Position Sensor (refer
to page 6-54).
8. Remove the Ink Supply Tubes Support Rail
(refer to page 6-56).
9. Remove the Encoder Strip (with spring and
attachment nut) (refer to page 6-84).
10. Remove the Carriage Assembly and
Trailing Cable (refer to page 6-100).

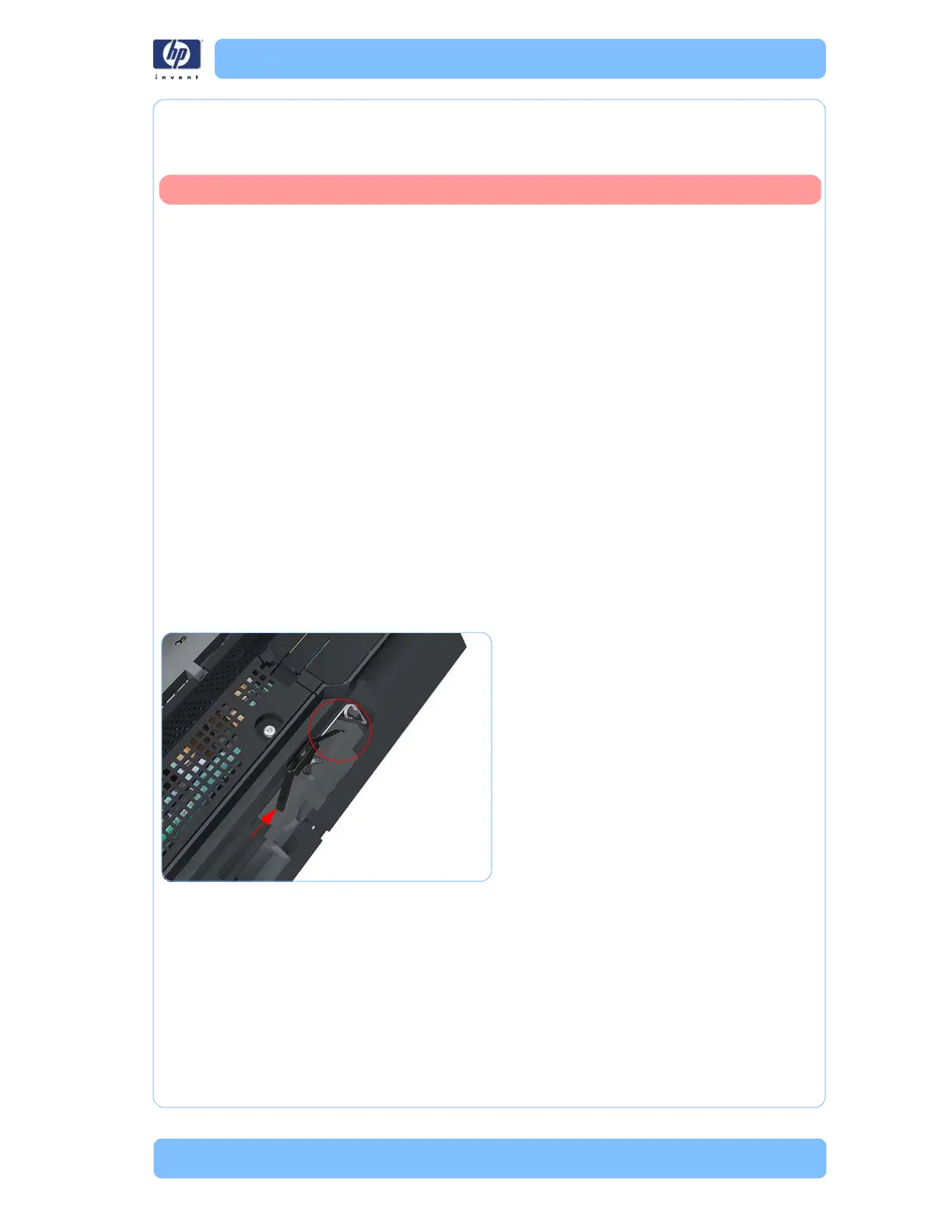

11 . Squeeze the left hand clip of the Carriage
Rear Bushing sufficiently to be able to
release it from the Carriage Assembly.
Switch off the printer and remove the power cable.
