6-114 Designjet Z Series — Service Manual
Removal and Installation

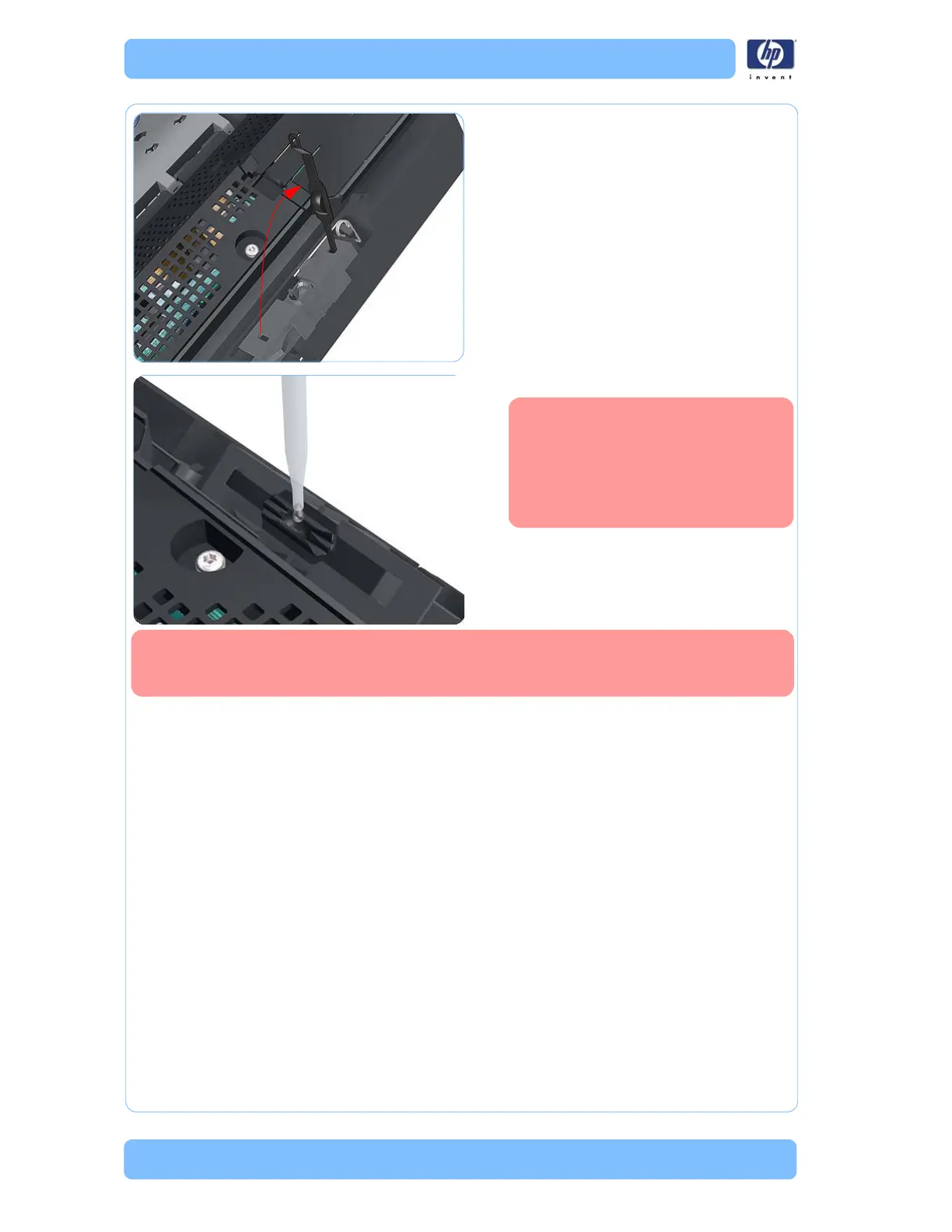

12. Rotate the Carriage Rear Bushing vertically
and remove it from the Carriage Assembly.
When you reinstall the
Carriage Rear Bushing, use the
Oil and Oil Dispenser from the
Lubrification Kit to add 2-3
drops of oil to the small
depression in it.
When you finish installing or replacing this component, you must perform the
necessary Service Calibrations. To find which calibrations you must perform,
Refer to page 6-8,
Service Calibration Guide to Removal and Installation
.
