6-200 Designjet Z Series — Service Manual
Removal and Installation

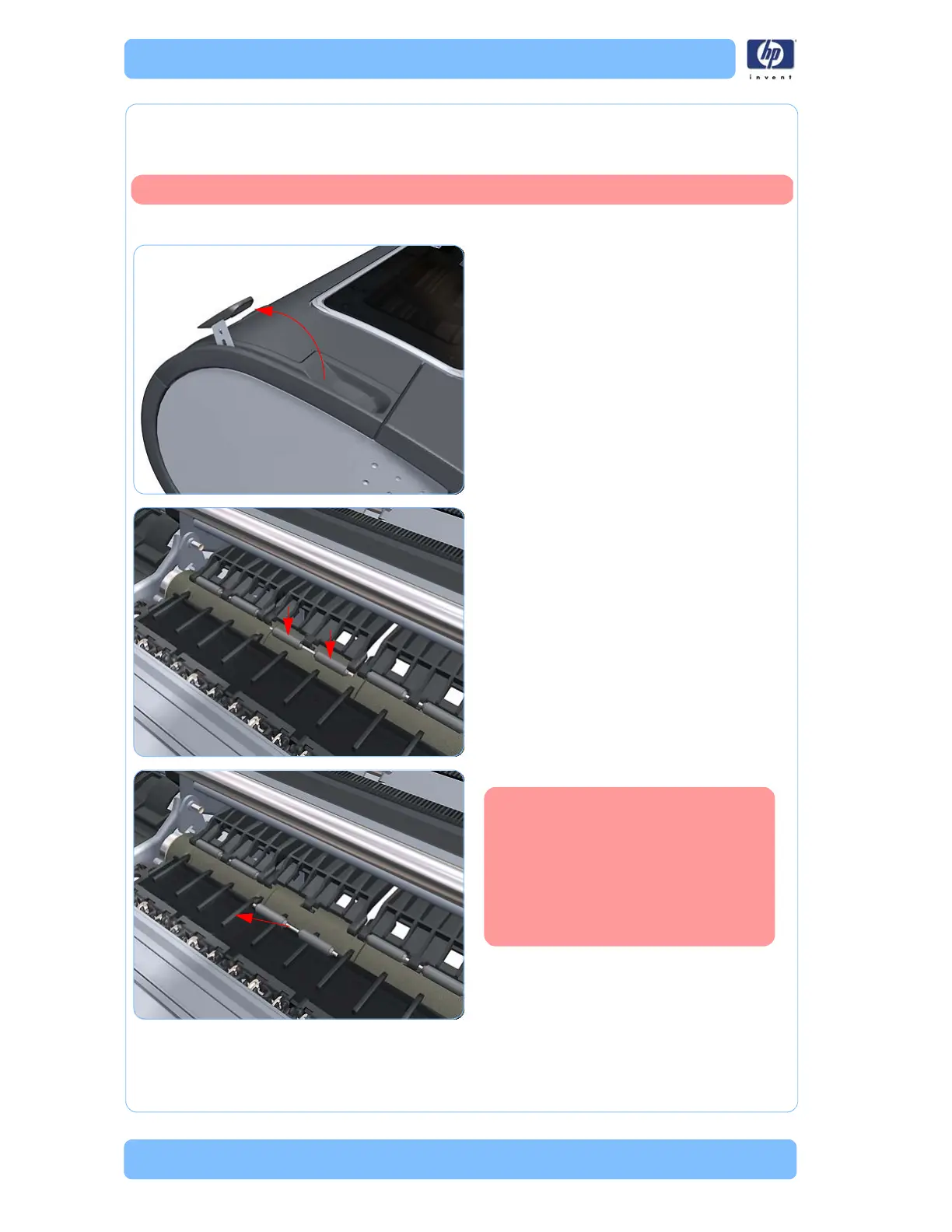

Pinch Roller
Removal
1. Open the Window.
2. Raise the Media Lever.
3. Apply enough downward pressure to the
Pinch Roller to release it from the
Pinchwheel Assembly.
4. Remove the Pinch Roller.
Switch off the printer and remove the power cable.
When you finish installing or
replacing this component, you
must perform the necessary
Service Calibrations. To find which
calibrations you must perform,
Refer to page 6-8,
Service
Calibration Guide to Removal and
Installation
.
To Next Page
