Designjet Z Series — Service Manual 6-171
Removal and Installation - Print Zone Overdrive
Print Zone Overdrive
Removal

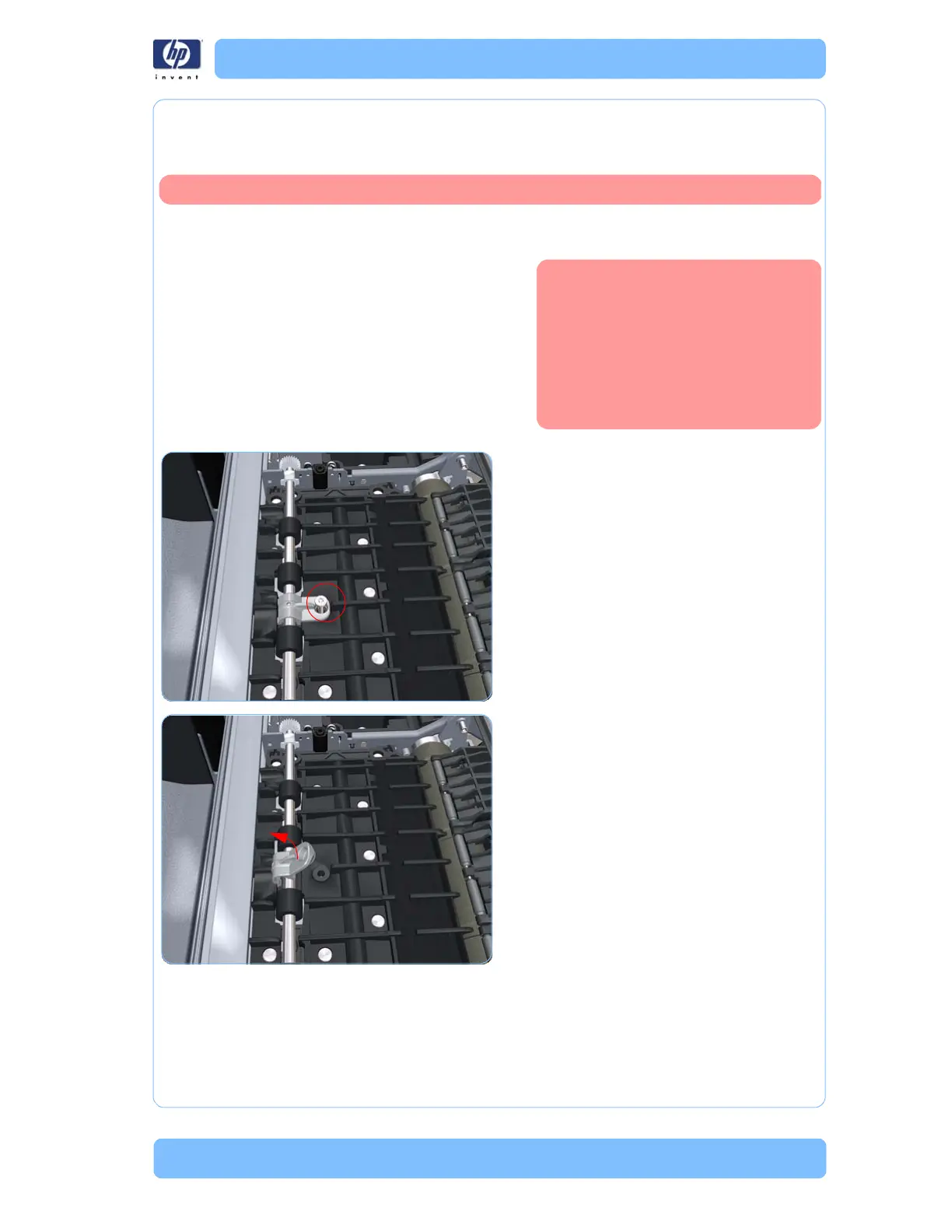

1. Remove the Starwheel Assembly (refer to
page 6-166).
2. Remove one T-15 screw that secures the left
clamp of the Print Zone Overdrive to the
Platen.
3. Lift attachment clamp vertically to release it
from the Platen.
Switch off the printer and remove the power cable.
The Print Zone Overdrive is in
two sections (left and right).
This procedure describes the
removal of both of the
sections. If you only want to
remove one of the sections
skip the steps for the other
section.
