Designjet Z Series — Service Manual 6-115
Removal and Installation - Belt Assembly
Belt Assembly
Removal
1. Remove the Carriage Assembly and
Trailing Cable (refer to page 6-100).

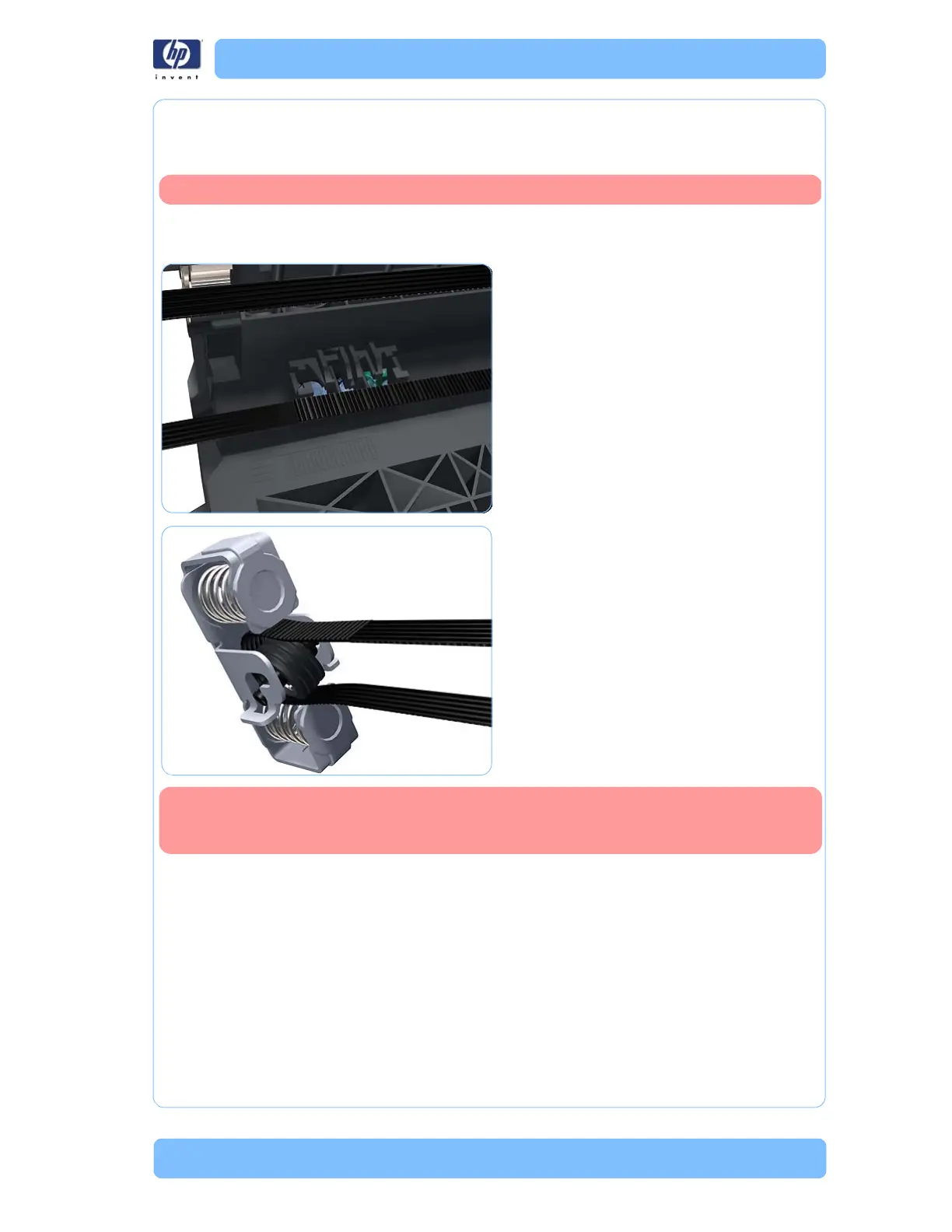

2. Slide the Belt Assembly out of the
attachment on the Carriage Assembly.
3. Remove the pulley to release the Belt
Assembly from the Belt Tensioner.
Switch off the printer and remove the power cable.
When you finish installing or replacing this component, you must perform the
necessary Service Calibrations. To find which calibrations you must perform,
Refer to page 6-8,
Service Calibration Guide to Removal and Installation
.
