Designjet Z Series — Service Manual 6-73
Removal and Installation - Pen to Paper Space (PPS) Solenoid
Pen to Paper Space (PPS) Solenoid

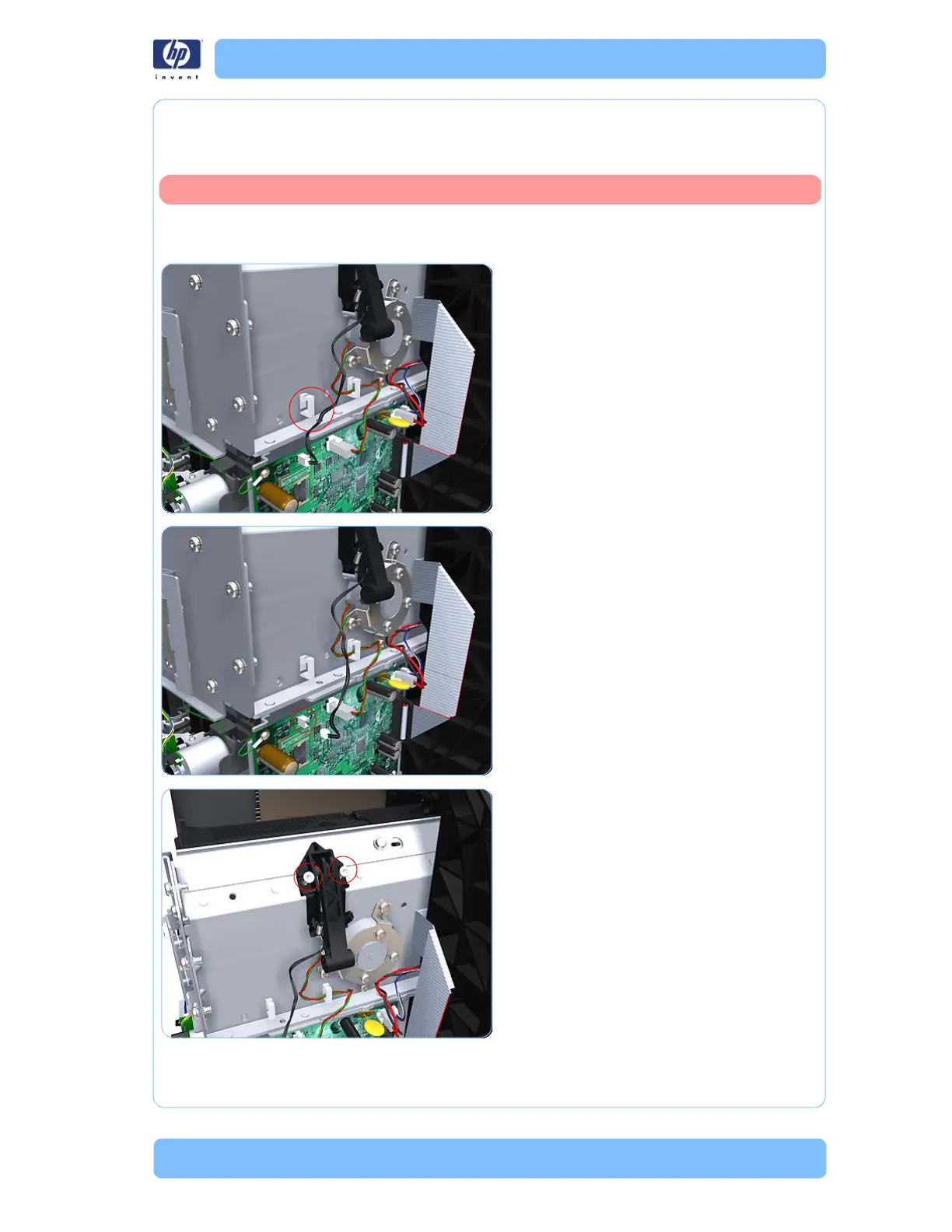

Removal
1. Remove the Right Cover (refer to page 6-
27).
2. Unroute the Pen to Paper Space (PPS)
Solenoid cable from the cable clamp.
3. Disconnect the Pen to Paper Space (PPS)
Solenoid connector from the PrintMech
PCA.
4. Remove two T-15 screws that secure the Pen
to Paper Space (PPS) Solenoid to the
printer.
Switch off the printer and remove the power cable.
