Designjet Z Series — Service Manual 6-211
Removal and Installation - Right Starwheel Lifter
Installation
1. For Z3200/Z2100 Revision C series
printers, turn the cam gear on the left end
support until the support is in the highest
position.
The following installation procedure is used only for Z3200 printers (Q6675C)
and Z2100 Revision C printers (Q6677C).

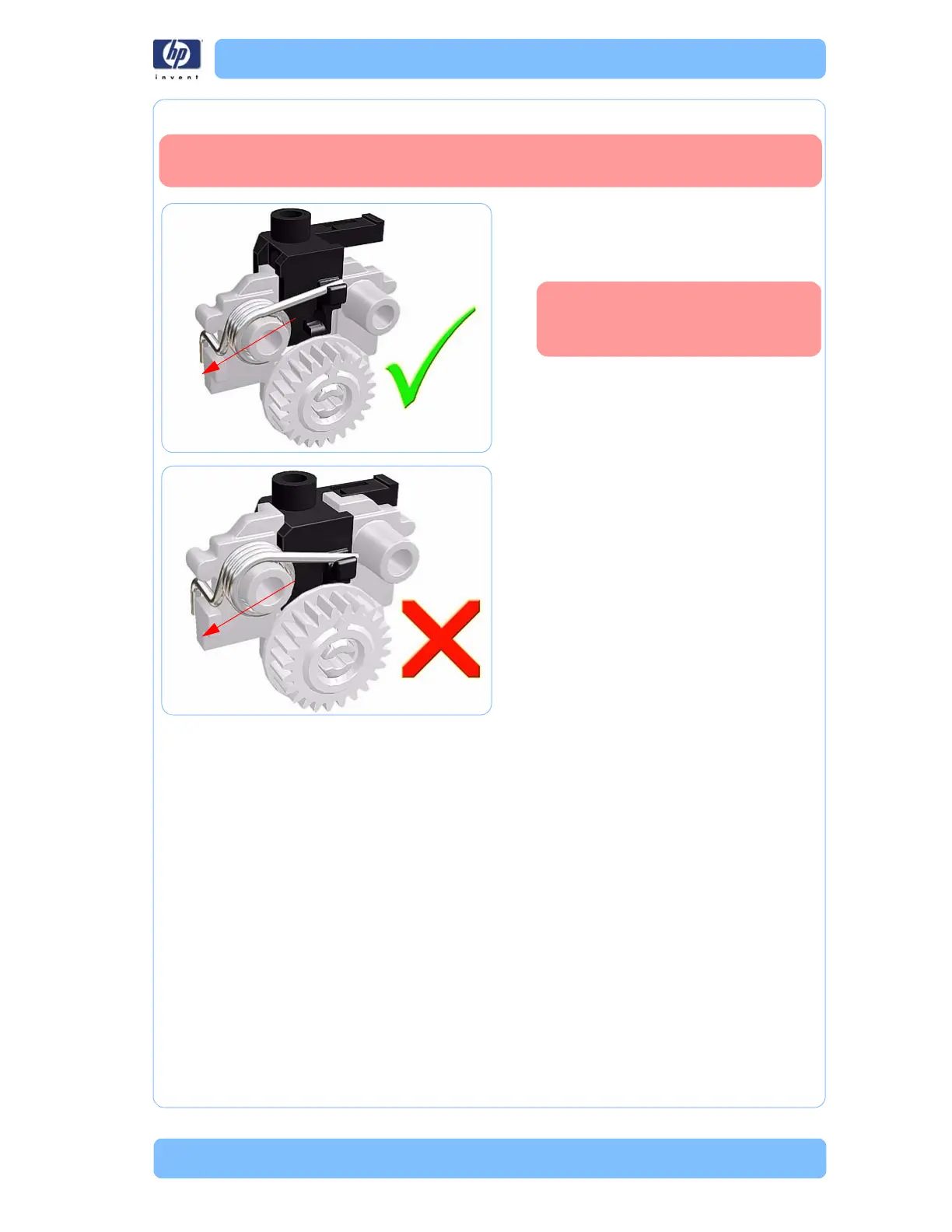

Take care that the sping does
not jump out of the left end
support.
