6-210 Designjet Z Series — Service Manual
Removal and Installation

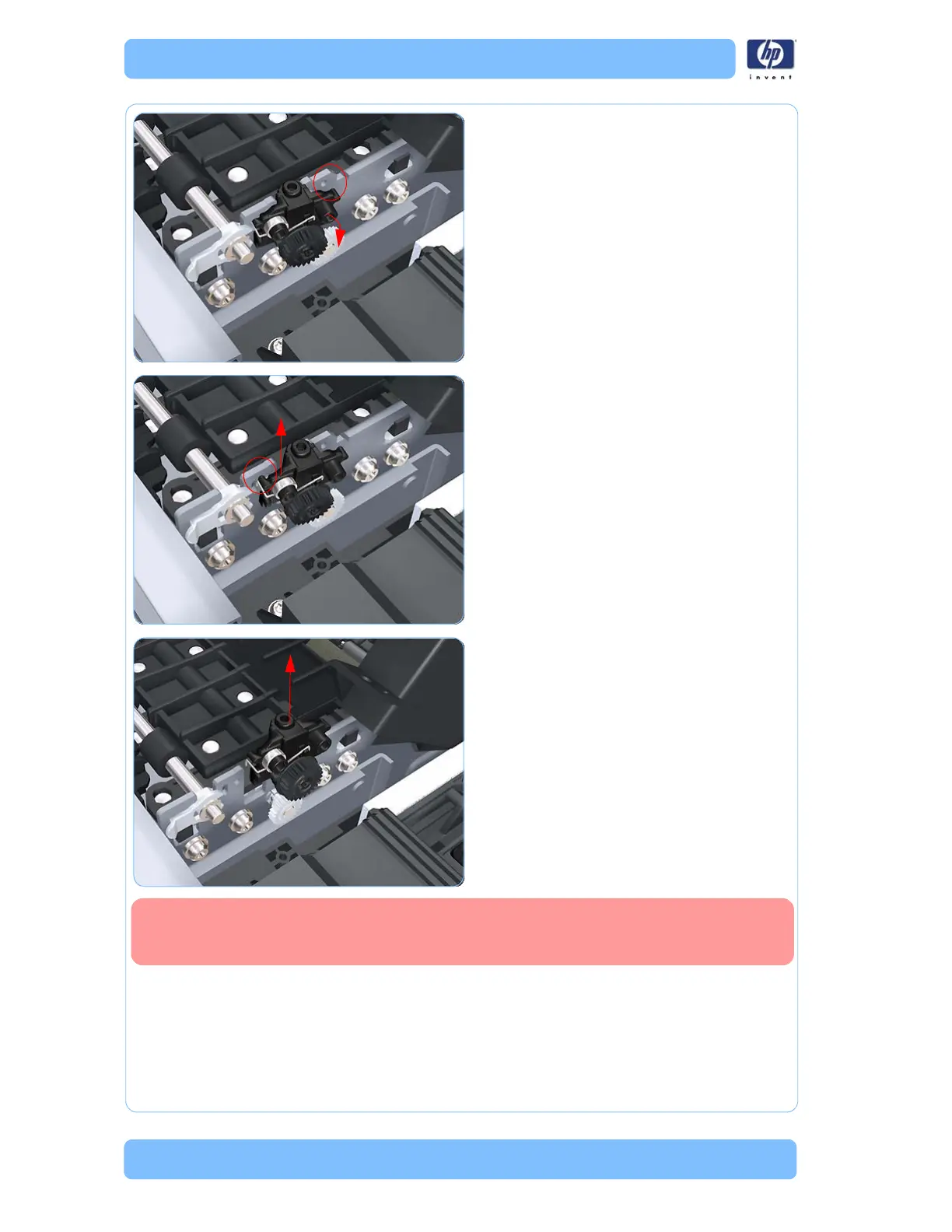

10. Rotate the Right Starwheel Lifter sufficiently
to disengage the right attachment lug.
11 . Tilt the Right Starwheel Lifter sufficiently to
disengage the left attachment lug.
12. Remove the Right Starwheel Lifter from the
printer.
When you finish installing or replacing this component, you must perform the
necessary Service Calibrations. To find which calibrations you must perform,
Refer to page 6-8,
Service Calibration Guide to Removal and Installation
.
