6-84 Designjet Z Series — Service Manual
Removal and Installation

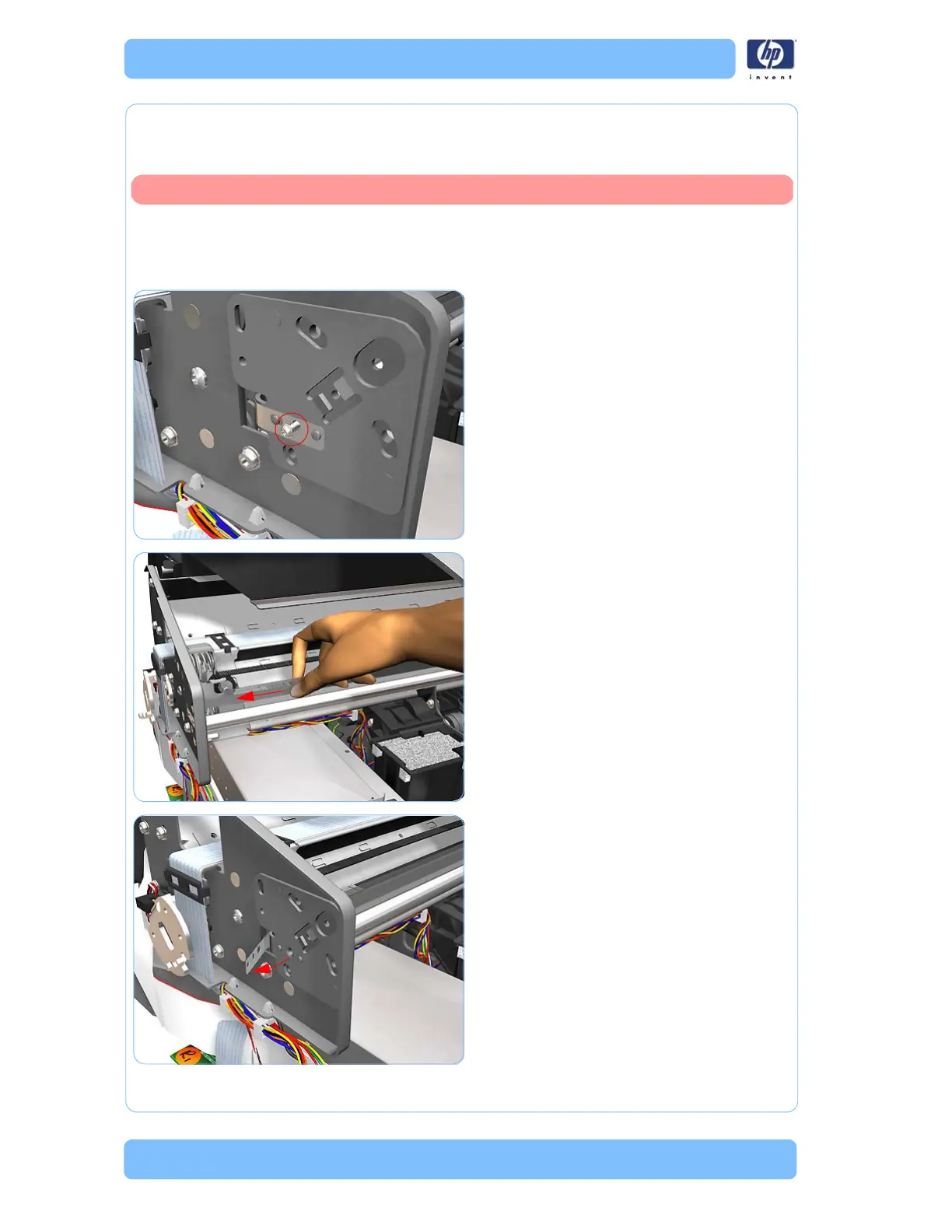

Encoder Strip (with spring and attachment nut)
Removal
1. Remove the Right Cover (refer to page 6-
27).
2. Remove the Left Cover (refer to page 6-30).
3. Remove the T-15 screw that secures
Encoder Strip to the printer.
4. Grip the Encoder Strip and move it
towards the left to take off the tension until
you have completed the next step.
5. Unclip the Encoder Strip from it’s
attachment lugs.
Switch off the printer and remove the power cable.
To Next Page
